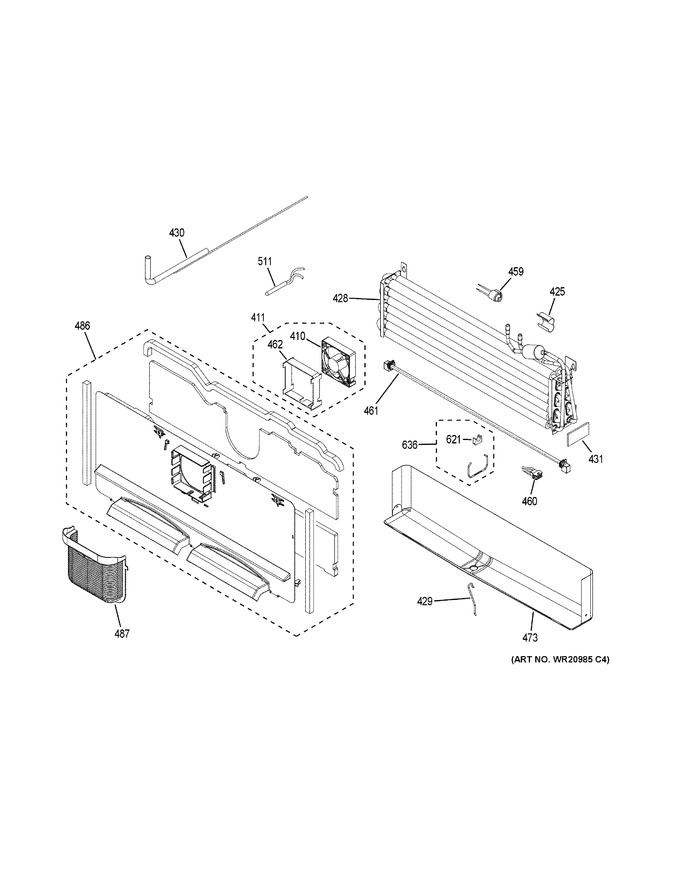

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 410 | WR60X10340 | Fan Motor Dc Fz Evap |
|
- | |||||
| 411 | WG03L00842 | Fz Fan And Felt Asm (Replaces: WR60X10352) |
|
Immediately | $ 117.18 | ||||
| 425 | WR02X10879 | Clip Evap Thermistor |
|
- | |||||
| 428 | WR85X10158 | Evap And Tube Asm Fz |
|
- | |||||
| 429 | WR51X10134 | Heater Conduction Fz |
|
- | |||||
| 430 | WR84X10113 | Refrigerator Suction Cap Tube Repair Kit |
|
- | |||||
| 431 | WR02X13725 | Block Evap Seal |
|
- | |||||
| 459 | WR50X10108 | Thermostat Defrost Fz |
|
$ 52.35 | |||||
| 460 | WR23X10745 | Heater Harness Fz W/tco |
|
- | |||||
| 461 | WR51X10131 | Heater Def Asm Fz |
|
- | |||||
| 462 | WR02X13734 | Tape Felt |
|
- | |||||
| 473 | WR17X13080 | Trough Drain Fz |
|
- | |||||
| 486 | WR14X20011 | Evap Cover Asm Fz |
|
- | |||||
| 487 | WR17X13090 | Cover Fan Fz |
|
- | |||||
| 511 | WR55X11121 | Sensor Temperature |
|
- | |||||
| 621 | WR02X10518 | Holder Element |
|
- | |||||
| 636 | WR02X13678 | Holder Element Asm |
|
- |
