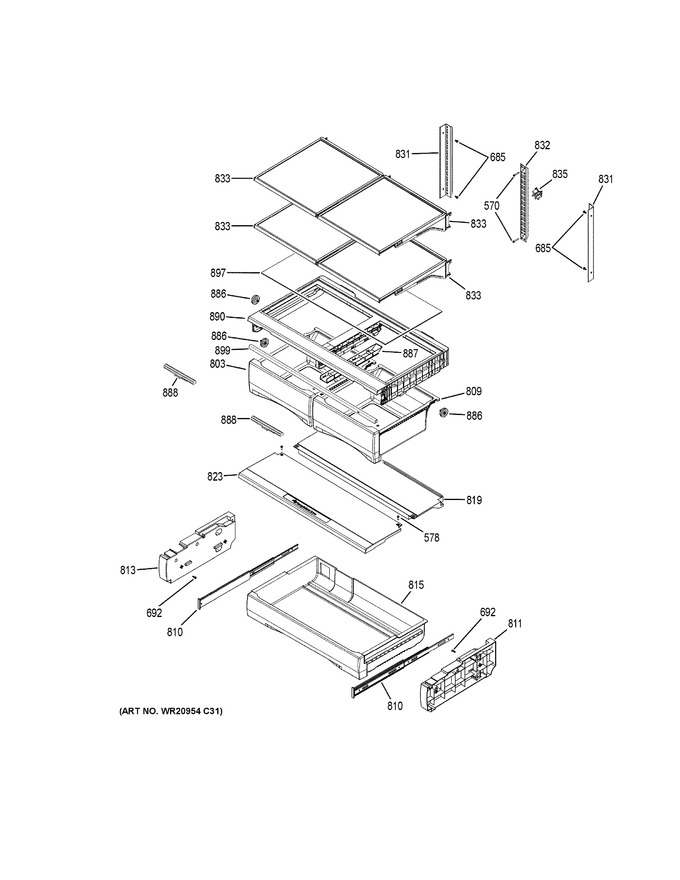

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
803	WR32X10895		Pan Veg Lh Asm		Appelez-nous	-
809	WR32X10894		Pan Veg Rh Asm		Appelez-nous	-
810	WR72X10440		Slide Asm Mp Lh		Appelez-nous	-
811	WR72X10432		Support Side Rh		Appelez-nous	-
813	WR72X10434		Support Side Lh		Appelez-nous	-
815	WR32X23644		Pan Meat Asm		Appelez-nous	-
819	WR72X23040		Cover Mp Top Back		Appelez-nous	-
823	WR32X24373		Cover Front Mp Asm		Appelez-nous	-
831	WR72X21071		Track Side Ff		Appelez-nous	-
832	WR72X10429		Track Center Ff		Appelez-nous	-
833	WR32X38025		Refrigerator Shelf Assembly		Appelez-nous	-
833	WR32X10870		Shelf Asm		Appelez-nous	-
835	WR02X13679		Spacer Track		Appelez-nous	-
886	WR02X13658		Roller Asm		Appelez-nous	-
887	WR72X10431		Guide Roller Veg Pan		Appelez-nous	-
888	WR17X24925		Damper Veg Pan		Appelez-nous	-
890	WG03L05575		Veg Top Frame Asm   (Replaces: WR32X10864)				$ 107.19
897	WR32X10865		Glass Veg Pan		Appelez-nous	-
899	WR02X21803		Bar Reinforcement		Appelez-nous	-
