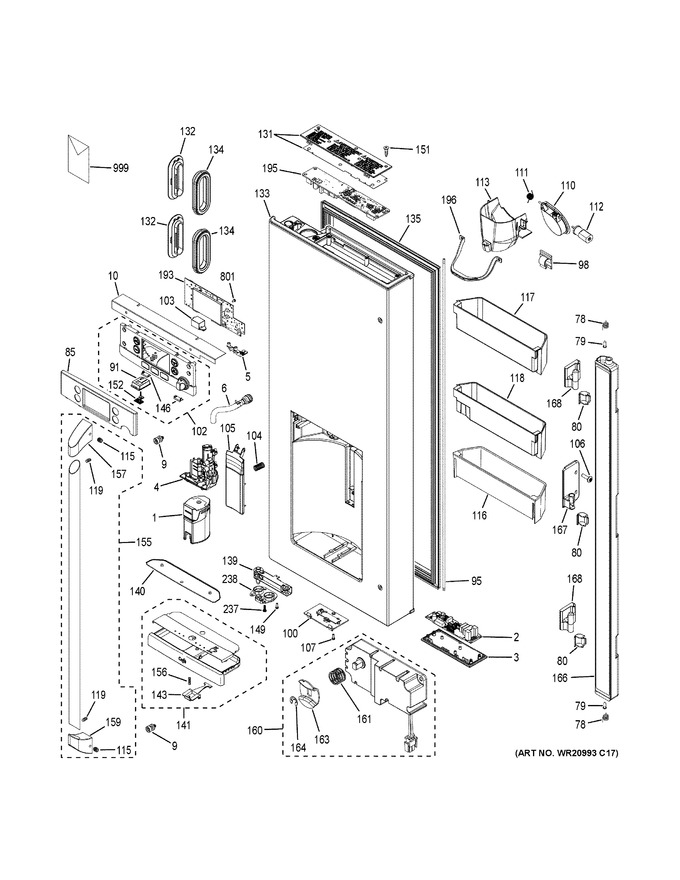

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WR01X26387		Single Serve Brewer Asm		Appelez-nous	-
2	WR55X26546		Pcb Asm Feature Board		Appelez-nous	-
3	WR02X24986		Pcb Cover Asm		Appelez-nous	-
4	WR60X26820		Bracket And Motor Asm		Appelez-nous	-
5	WR02X25674		Standoff Speaker		Appelez-nous	-
6	WR02X26448		Silicon Tube Asm		Appelez-nous	-
9	WR01A00255		Fastener Handle Ss   (Replaces: WR02X12028)			Immediately	$ 15.88
10	WR14X10382		Gasket Cafe Display		Appelez-nous	-
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
85	WG03L05428		Display Cover   (Replaces: WR17X13172)			Immediately	$ 147.83
91	WR02X13751		Housing Cover Usb		Appelez-nous	-
95	WR02X21126		Tube Pex Lh Door		Appelez-nous	-
98	WR01X11064		Clip Phgl		Appelez-nous	-
100	WR55X23636		Cover Led Fz Asm		Appelez-nous	-
102	WR17X27131		Display Asm Ss Kcup		Appelez-nous	-
103	WG03A00265		Speaker   (Replaces: WR55X11139)				$ 49.33
104	WR01X11027		Spring		Appelez-nous	-
105	WR17X13165		Paddle Front Switch Asm		Appelez-nous	-
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
107	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
110	WR17X13229		Body Duct Door		Appelez-nous	-
111	WR01X11017		Spring Duct Door		Appelez-nous	-
112	WR60X10344		Motor Duct Door		Appelez-nous	-
113	WR17X24626		Funnel Ice		Appelez-nous	-
115	WR01X11057		Set Screw .250 Dia.		Appelez-nous	-
116	WR71X24976		Bin Door Ice Btm		Appelez-nous	-
117	WR71X11045		Bin Ice Door Top Lh		Appelez-nous	-
118	WR71X11046		Bin Ice Door Mid Lh		Appelez-nous	-
119	WR02X11850		Set Screw		Appelez-nous	-
131	WR02X13741		Pcb Cover Asm Dgy		Appelez-nous	-
132	WR14X25124		Collar Port		Appelez-nous	-
133	WR78X25389		Single Serve Door Ff Lh		Appelez-nous	-
134	WR14X10364		Port Gasket		Appelez-nous	-
135	WG03L09792		Gasket Ff Dgy   (Replaces: WR14X10377)				$ 145.45
139	WR11X23034		Closure Door Asm Lh		Appelez-nous	-
140	WR17X13174		Tray Guard Asm		Appelez-nous	-
141	WR17X27514		Tray Recess Asm		Appelez-nous	-
143	WR02X13747		Lever Tray Lock		Appelez-nous	-
146	WR02X13655		Shield Led Light				$ 19.05
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
151	WR01X11028		Scr 8-18 Flp 1/2 S		Appelez-nous	-
152	WR13X10980		Cover Usb		Appelez-nous	-
155	WG03L05277		Handle Asm Ff   (Replaces: WR12X11047)				$ 136.22
156	WR01X11035		Spring Tray Latch		Appelez-nous	-
157	WR12X11050		Handle Cap End		Appelez-nous	-
159	WR12X11051		Handle Cap End		Appelez-nous	-
160	WR60X10345		Auger Motor Asm		Appelez-nous	-
161	WR02X13645		Spring Clutch Am		Appelez-nous	-
163	WR02X13647		Clutch Coupling Am		Appelez-nous	-
164	WR02X13648		E Clip		Appelez-nous	-
166	WR17X13240		Mullion Articulating Asm		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
193	WR55X26547		Board Asm Graphic Lcd		Appelez-nous	-
195	WR55X26330		Pcb Asm Door Control		Appelez-nous	-
196	WR02X25149		Funnel Clip		Appelez-nous	-
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
238	WR02X13634		Stop Door Rh/lh Asm		Appelez-nous	-
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
999	31-49043		Pm Quick Install Guide		Appelez-nous	-
999	49-60711		Pm Quick Use & Care Cafe		Appelez-nous	-
999	31-51932		Pm Mini Manual Service		Appelez-nous	-
