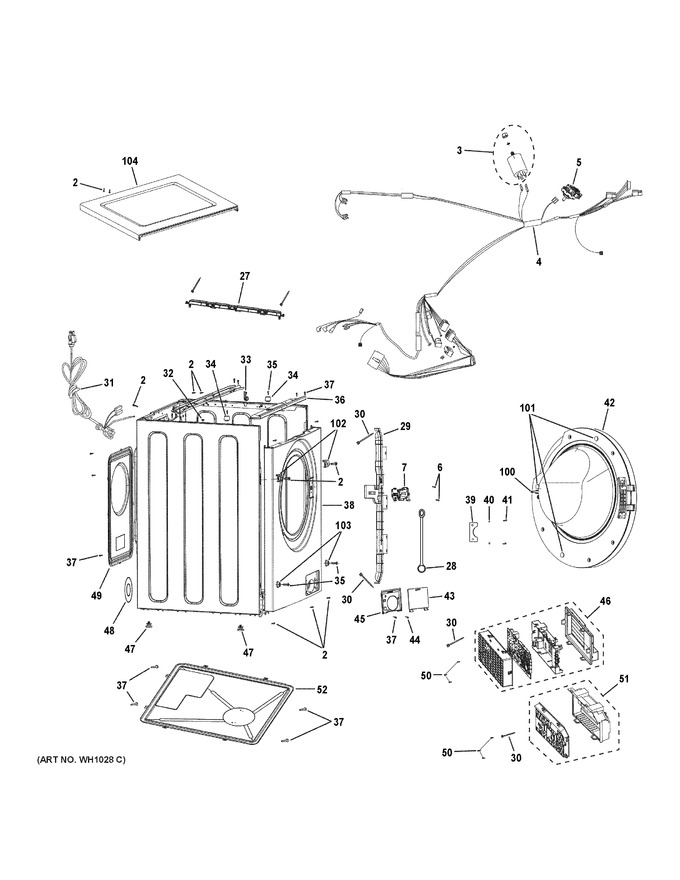

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WH02X26236		Ground Screw		Appelez-nous	-
3	WH43X26237		Line Filter Assemby		Appelez-nous	-
4	WH19X26238		Main Harness		Appelez-nous	-
5	WH12X26239		Pressure Switch				$ 37.98
5	WH12X27814		Pressure Switch		Appelez-nous	-
6	WH02X26240		Door Lock Screw St4*12		Appelez-nous	-
7	WH01X26241		Door Lock				$ 81.99
27	WH19X26256		Lower Harness Track		Appelez-nous	-
28	WH16X26579		Manual Door Unlock Strap		Appelez-nous	-
29	WH19X26258		Front Harness Track		Appelez-nous	-
30	WH01X26259		Wire Tie		Appelez-nous	-
31	WH19X26260		Power Cord		Appelez-nous	-
32	WH02X26262		Spring Sheath Right		Appelez-nous	-
33	WH02X26263		Spring Sheath Left		Appelez-nous	-
34	WH01X26264		Top Panel Guide Pin		Appelez-nous	-
35	WH02X26265		Top Panel Guide Pin Screw		Appelez-nous	-
36	WH16X26266		Top Front Bracket		Appelez-nous	-
37	WH02X26267		Top Front Bracket Screw St3.5*12		Appelez-nous	-
38	WH46X26268		Front Panel		Appelez-nous	-
39	WH10X26269		Door Hinge Mounting Plate		Appelez-nous	-
40	WH02X26270		Lock Washer		Appelez-nous	-
41	WH02X26271		Door Hinge Screws		Appelez-nous	-
42	WH46X26276		Door Asm				$ 218.16
43	WH42X26272		Drain Cleanout Access Door (white)		Appelez-nous	-
44	WH02X26189		Tapping Screw		Appelez-nous	-
45	WH42X26277		Access Door Frame		Appelez-nous	-
46	WH18X26279		Power Board Asm		Appelez-nous	-
47	WH46X26281		Leveling Leg		Appelez-nous	-
48	WH41X26282		External Hose Guide		Appelez-nous	-
49	WH44X26283		Rear Cover		Appelez-nous	-
50	WH02X26284		Power Board Mounting Screws		Appelez-nous	-
51	WH18X26285		Inverter Board Asm		Appelez-nous	-
52	WH17X26287		Bottom Cover Plate		Appelez-nous	-
100	WH01X26274		Door Strike				$ 20.65
101	WH01X26275		Doorplug		Appelez-nous	-
102	WH01X26843		Upper Guide Pin		Appelez-nous	-
103	WH01X26844		Lower Guide Pin		Appelez-nous	-
104	WH44X26235		Top Cover		Appelez-nous	-
123	WH16X28415		Cross Brace		Appelez-nous	-
