SELECT A DIAGRAM

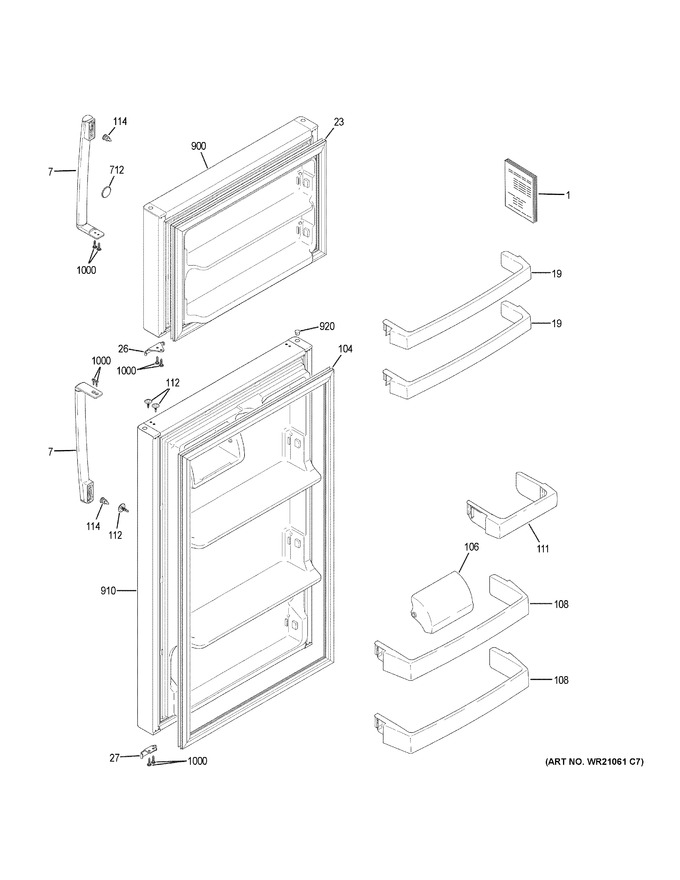

Doors
Freezer Section
Fresh Food Section
Fresh Food Shelves
Ice Maker
Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51899-3 | Mini Manual Wiring |
|
- | |||||
| 7 | WR12X21196 | Handle Plastic Asm Black |
|
- | |||||
| 19 | WG03L01680 | Shelf Front Full Fz (Replaces: WR71X10681) |
|
$ 76.98 | |||||
| 23 | WR24X23009 | Gasket Door Fz Dg |
|
- | |||||
| 26 | WR02X21191 | Stop Door |
|
- | |||||
| 27 | WR02X21190 | Stop Door |
|
- | |||||
| 104 | WR24X23008 | Gasket Door Ff Dg |
|
- | |||||
| 106 | WG03L09118 | Door Dairy Clear (Replaces: WR22X10024) |
|
$ 63.72 | |||||
| 108 | WG03F03746 | Bin Fixed Raingutter Gal (Replaces: WR71X10525) |
|
$ 133.54 | |||||
| 111 | WG03L01575 | Shelf Front Half Ff (Replaces: WR71X10682) |
|
$ 72.54 | |||||
| 112 | WR02X21195 | Plug Door Rvsbl |
|
- | |||||
| 114 | WR01X21158 | Fastener Door Handle |
|
- | |||||
| 712 | WR02X25820 | Badge Asm Ge |
|
- | |||||
| 900 | WR78X23012 | Door Foam Asm Fz Bb |
|
- | |||||
| 910 | WR78X23011 | Door Foam Asm Ff Bb |
|
- | |||||
| 920 | WR02X11774 | Plug Button Thimble |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- |
