SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Convection Fan


Door & Drawer Parts


Gas & Burner Parts

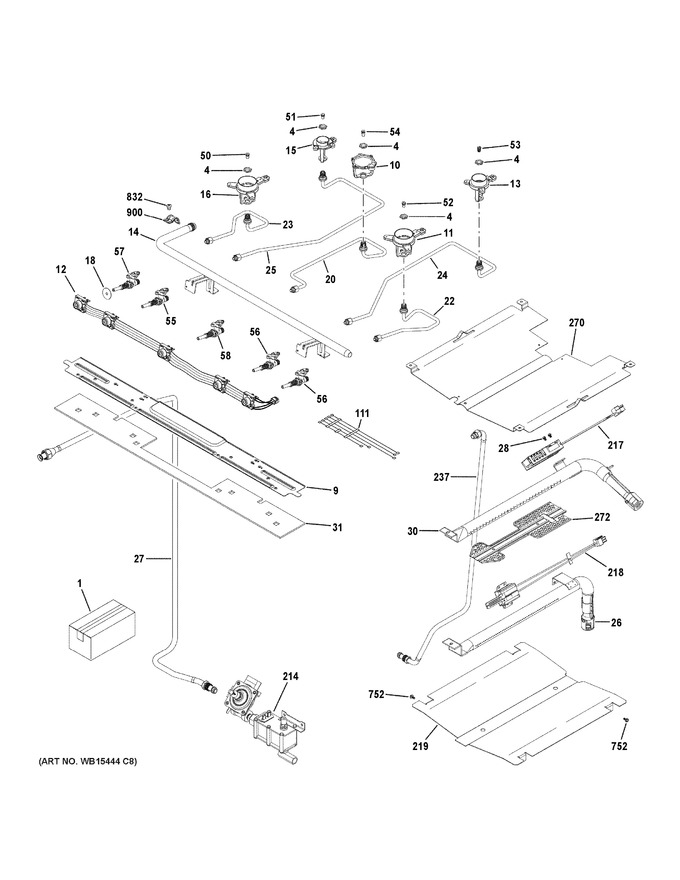

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-17175		Pm Mini Manual		Appelez-nous	-
1	49-85224		Pm Gas Quick Guide		Appelez-nous	-
1	31-10990		Lp Conversion Inst		Appelez-nous	-
1	31-10998		Pm Install Instructions		Appelez-nous	-
1	WB28X24757		Kit Lp Conversion Asm		Appelez-nous	-
1	WB49X25442		Lp Kit High Altitude Asm		Appelez-nous	-
1	WB49X25441		Ng Kit High Altitude Asm		Appelez-nous	-
4	WS01A01130		Economic Nut   (Replaces: WB01K10037)			Immediately	$ 16.28
9	WB02K10272		Manifold Support		Appelez-nous	-
10	WS01A00976		Ckt Bracket Small   (Replaces: WB02K10360)				$ 11.42
11	WB02X24727		Injet, Medium V2		Appelez-nous	-
12	WB18X23202		Switches & Harness		Appelez-nous	-
13	WB02X24726		Injet, Large V2		Appelez-nous	-
14	WB28X24765		Manifold Pipe		Appelez-nous	-
15	WB02X24728		Injet, Small V2		Appelez-nous	-
16	WB02X24725		Injet, Xl V2		Appelez-nous	-
18	WB2K24		Cover Valve		Appelez-nous	-
20	WB28X24762		Orifice Holder Central		Appelez-nous	-
22	WB28X24766		Orifice Holder Rf		Appelez-nous	-
23	WB28X24761		Orifice Holder Rf		Appelez-nous	-
24	WB28X24764		Orifice Holder Rr		Appelez-nous	-
25	WB28X24763		Orifice Holder Lr		Appelez-nous	-
26	WS01F06053		Burner Bake   (Replaces: WB16X20463)				$ 50.52
27	WB28X24772		Tube Manifold Supply		Appelez-nous	-
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
30	WB16K10086		Burner Broil		Appelez-nous	-
31	WB35X24985		Insulation Burner Box		Appelez-nous	-
50	WB28X24768		Orifice Spud		Appelez-nous	-
51	WS01F01338		Orifice Spud Lp   (Replaces: WB28K10834)			Immediately	$ 3.97
52	WS01F01389		Orifice-lp 89mm   (Replaces: WB28K10023)				$ 3.97
53	WS01F01390		Orifice-lp Lg 99mm   (Replaces: WB28K10032)				$ 12.71
54	WS01F01422		Orifice Spud Lp 86l   (Replaces: WB28K10215)				$ 12.71
55	WS01F05939		Valve Burner 270   (Replaces: WB21X20261)				$ 57.25
56	WS01F05938		Valve Burner 270   (Replaces: WB21X20260)			Immediately	$ 22.53
57	WB21X20262		Valve Burner 270		Appelez-nous	-
58	WB21X20394		Valve Burner 270		Appelez-nous	-
111	WB18X26980		Electrodes & Harness H.v		Appelez-nous	-
214	WS01F06400		Valve Control Asm Nor. D   (Replaces: WB21X21506)				$ 278.27
217	WB13X24755		Igniter Glowbar		Appelez-nous	-
218	WS01F10365		Igniter Glowbar   (Replaces: WB13X25500)			Immediately	$ 163.13
219	WB49K44		Flame Spreader		Appelez-nous	-
237	WB28X24773		Tube Burner Supply		Appelez-nous	-
270	WB49K10025		Deflector		Appelez-nous	-
272	WB34X20303		Shield Broil		Appelez-nous	-
752	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
832	WB01K10080		Screw Thermostat		Appelez-nous	-
900	WB02K10297		Bracket Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
