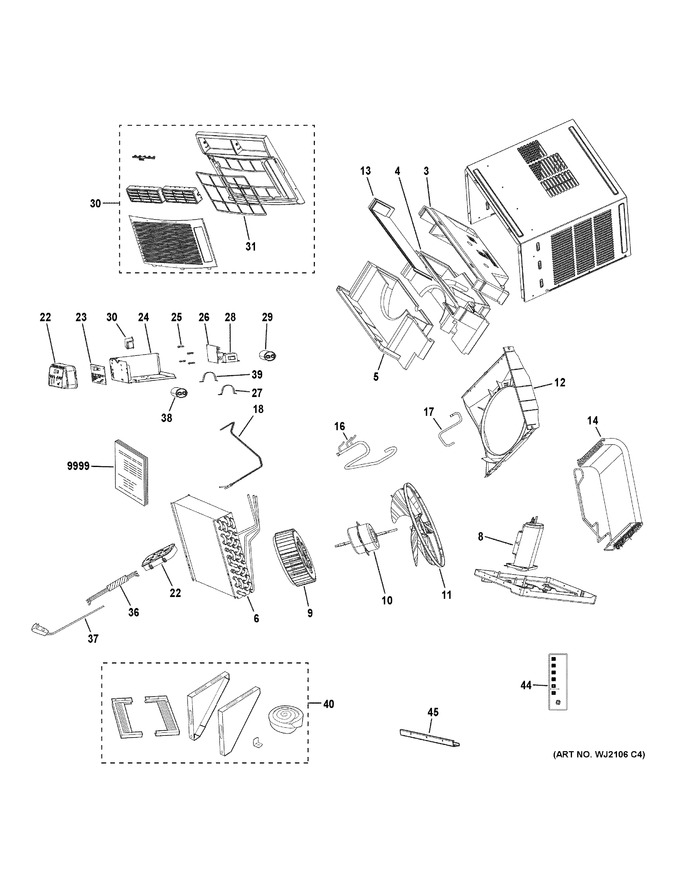

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WJ76X20160 | Top Scroll Case |
|
- | |||||
| 4 | WJ05X20150 | Middle Scroll Case |
|
- | |||||
| 5 | WJ76X20131 | Bottom Scroll Case |
|
- | |||||
| 6 | WJ87X22170 | Evaporator |
|
- | |||||
| 8 | WJ98X22168 | Compressor |
|
- | |||||
| 9 | WJ76X22121 | Indoor Fan Blade |
|
- | |||||
| 10 | WJ94X22171 | Fan Motor |
|
- | |||||
| 11 | WJ73X20130 | Axial Fan |
|
- | |||||
| 12 | WJ76X22114 | Condenser Cover |
|
- | |||||
| 13 | WJ76X20154 | Rear Cover Board |
|
- | |||||
| 14 | WJ88X22113 | Condenser |
|
- | |||||
| 16 | WJ53X22172 | Sucton Tube |
|
- | |||||
| 17 | WJ53X22169 | Discharge Tube |
|
- | |||||
| 18 | WJ53X22167 | Capillary Tube |
|
- | |||||
| 22 | WJ71X22689 | Control Panel |
|
- | |||||
| 23 | WJ26X22688 | Display Board |
|
- | |||||
| 24 | WJ05X20139 | Control Box |
|
- | |||||
| 25 | WJ65X10130 | Support, Pcb |
|
- | |||||
| 26 | WJ26X22155 | Main Board |
|
$ 167.10 | |||||
| 27 | WJ01X22166 | Capacitor Clamp |
|
- | |||||
| 28 | WJ27X20099 | Transformer |
|
- | |||||
| 29 | WJ20X22165 | Capacitor |
|
- | |||||
| 30 | WJ71X22126 | Front Panel Asm |
|
- | |||||
| 31 | WJ85X22120 | Filter |
|
- | |||||
| 36 | WJ36X10023 | Harness |
|
- | |||||
| 37 | WJ35X20091 | Power Cord |
|
- | |||||
| 38 | WJ20X22164 | Capacitor |
|
- | |||||
| 39 | WJ03X10093 | Clamp, Capacitor |
|
- | |||||
| 40 | WJ43X22122 | Installation Parts |
|
- | |||||
| 44 | WJ26X22103 | Remote Control |
|
- | |||||
| 45 | WJ65X22125 | Top Rail |
|
- | |||||
| 9999 | 31-30833 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-7765 | Pm Use And Care Manual |
|
- |
