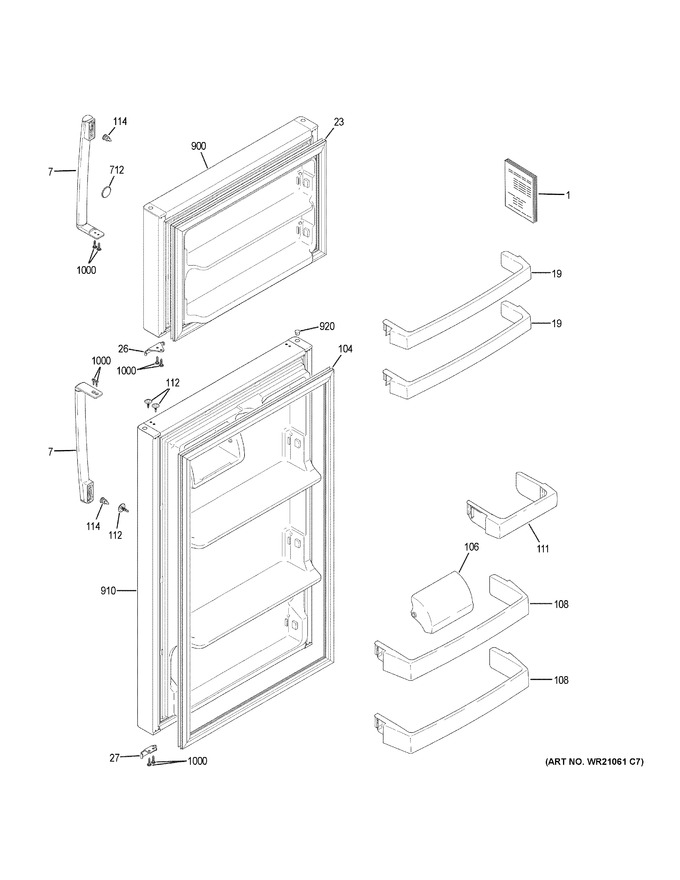

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51899-3		Mini Manual Wiring		Appelez-nous	-
7	WR12X27039		Handle Plastic White		Appelez-nous	-
19	WG03L01680		Shelf Front Full Fz   (Replaces: WR71X10681)				$ 76.98
23	WR24X10187		Gasket Door Fz		Appelez-nous	-
26	WR02X28287		Freezer Door Stop White		Appelez-nous	-
27	WR02X28283		Refrigerator Door Stop White		Appelez-nous	-
104	WG03L01328		Gasket Door Ff   (Replaces: WR24X10186)				$ 178.69
106	WR22X28065		Refrigerator Clear Dairy Door		Appelez-nous	-
108	WG03F03746		Bin Fixed Raingutter Gal   (Replaces: WR71X10525)				$ 133.54
111	WG03L01575		Shelf Front Half Ff   (Replaces: WR71X10682)				$ 72.54
112	WR01X21159		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21158		Fastener Door Handle		Appelez-nous	-
712	WR02X25820		Badge Asm Ge		Appelez-nous	-
900	WR78X22964		Door Foam Asm Fz Ww		Appelez-nous	-
910	WR78X22963		Door Foam Asm Ff Ww		Appelez-nous	-
920	WR2X8233		Plug Btn Wht		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
