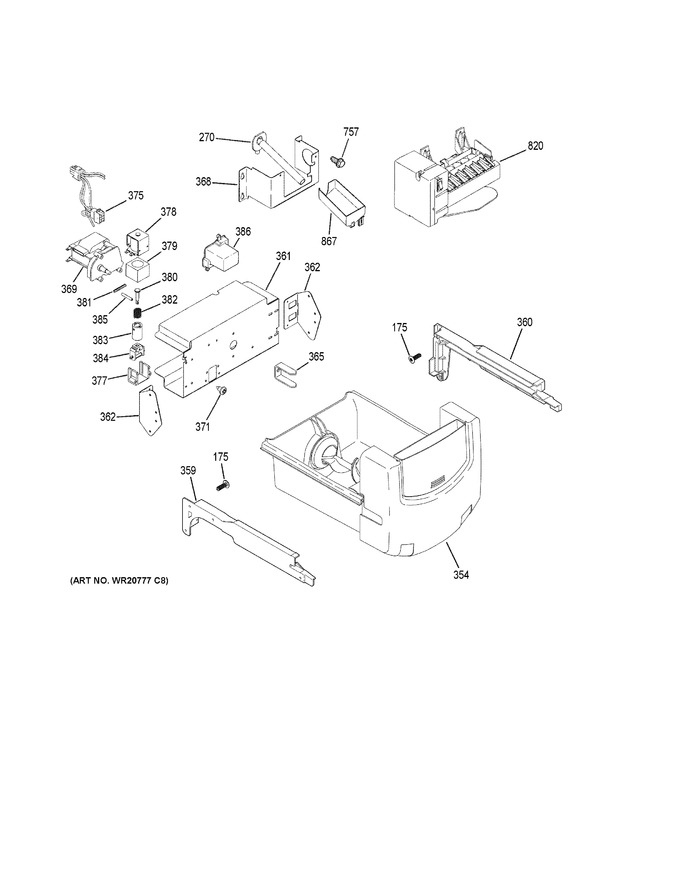

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Screw 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
354	WR17X12904		Bucket & Auger Asm		Appelez-nous	-
359	WR72X10169		Glide Bracket Lh		Appelez-nous	-
360	WR01A00218		Glide Bracket Rh   (Replaces: WR72X10170)				$ 19.53
361	WR17X24304		Cover Motor & Solenoid		Appelez-nous	-
362	WR02X12057		Bracket Angle		Appelez-nous	-
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
368	WR02X12061		Bracket Im Mounting		Appelez-nous	-
369	WR60X22815		Motor Crusher Disp		Appelez-nous	-
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X26770		Harness Motor & Sol		Appelez-nous	-
377	WR2X7309		Saddle Solenoid		Appelez-nous	-
378	WR62X20426		Solenoid And Arm Asm		Appelez-nous	-
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 151.81
381	WR01F00328		Spiral Pin   (Replaces: WR2X4257)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X12742)				$ 151.81
384	WG04F00407		Stirrup Solenoid Display   (Replaces: WR17X1066)				$ 95.41
385	WR02X20425		Spiral Pin		Appelez-nous	-
386	WR02X11295		Boot Auger Motor		Appelez-nous	-
757	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
820	WR30X10087		Icemaker Asm		Appelez-nous	-
867	WR29X10109		Cup Fill Im		Appelez-nous	-
