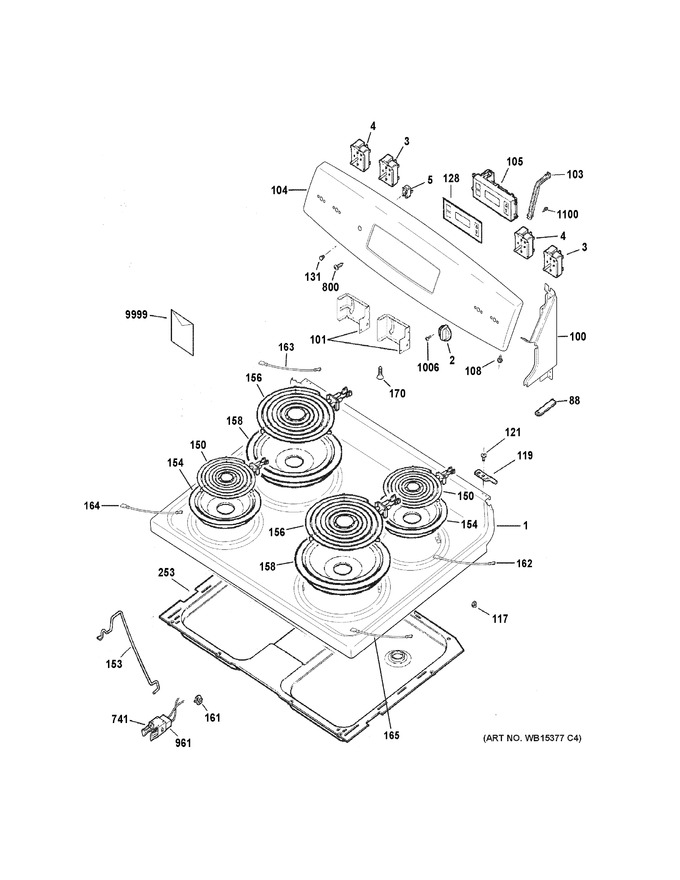

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X21353 | Range Top |
|
- | |||||
| 2 | WS01L11538 | Knob Valve (Replaces: WB03X21352) |
|
$ 7.15 | |||||
| 3 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 4 | WG02F00292 | Control Infinite Switch (Replaces: WB24T10029) |
|
Immediately | $ 60.36 | ||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 88 | WB2K62 | Pad Felt (2") |
|
- | |||||
| 100 | WB07X20277 | End Support Right |
|
- | |||||
| 100 | WB07X20278 | End Support Left |
|
- | |||||
| 101 | WB37X20196 | Bracket Cook Top Right |
|
- | |||||
| 101 | WB37X20193 | Bracket Cook Top Left |
|
- | |||||
| 103 | WB02K10150 | Bracket Control |
|
- | |||||
| 104 | WB36X21597 | Trim Control |
|
- | |||||
| 105 | WB27X29137 | Control Oven To9 (elec) |
|
$ 156.79 | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.57 | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 121 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 128 | WB07X21378 | Overlay T09 |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 150 | WB30K10016 | Surface Unit Asm 6 |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WS01L09257 | Bowl Burner 6 (ch) (Replaces: WB31K10265) |
|
Immediately | $ 14.86 | ||||
| 156 | WB30K10018 | Surface Unit Asm 8 |
|
- | |||||
| 158 | WS01L09258 | Bowl Burner 8 (ch) (Replaces: WB31K10266) |
|
Immediately | $ 19.54 | ||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 162 | WB18X27485 | Harness Surface Unit Rr |
|
- | |||||
| 163 | WB18X27486 | Harness Surface Unit Lr |
|
- | |||||
| 164 | WB18X27487 | Harness Surface Unit Lf |
|
- | |||||
| 165 | WB18X27488 | Harness Surface Unit Rf |
|
- | |||||
| 170 | WB1X5874 | Screw Wh |
|
- | |||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 1006 | WS01A01257 | Screw 8-32 Tpt Flr 215 Sn (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 1100 | WB01T10016 | Screw 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 9999 | 49-80755 | Pm Quick Guide |
|
- | |||||
| 9999 | 31-10892 | Pm Install Instructions |
|
- | |||||
| 9999 | 31-17096 | Pm Mini Manual |
|
- |
