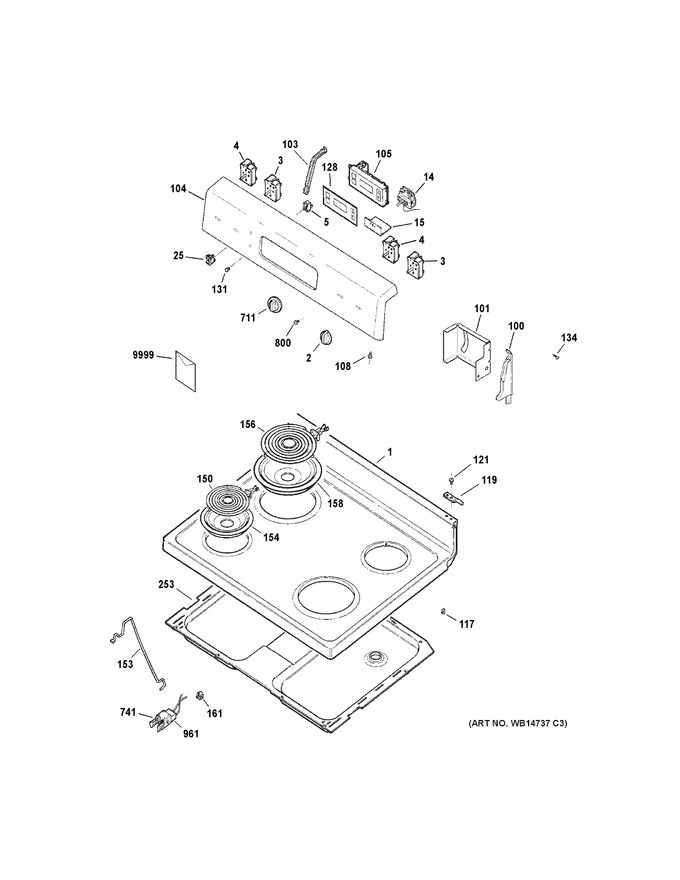

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62K10079 | Range Top |
|
- | |||||
| 2 | WB03T10285 | Knob Infinite (bq) |
|
- | |||||
| 3 | WS01F01651 | Inf Sw Ctn (2100w) (Replaces: WB24T10027) |
|
Immediately | $ 61.32 | ||||
| 4 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 14 | WS01F02680 | Thermostat Electric (Replaces: WB20K10026) |
|
Immediately | $ 177.72 | ||||
| 15 | WB02K10070 | Carton Cover Thermostat |
|
- | |||||
| 25 | WB24X22620 | Switch Rocker Sealed |
|
- | |||||
| 100 | WB07K10197 | End Support Rt (bsqt) |
|
- | |||||
| 100 | WB07K10198 | End Support Lf (bsqt) |
|
- | |||||
| 101 | WB37X20286 | Bracket Cook Top |
|
- | |||||
| 101 | WB37X20285 | Bracket Cook Top |
|
- | |||||
| 103 | WB02K10076 | Bracket Control |
|
- | |||||
| 104 | WB36X22621 | Trim Control |
|
- | |||||
| 105 | WS01F02404 | Timer Tod Led (Replaces: WB27T10469) |
|
Immediately | $ 156.51 | ||||
| 108 | WB1X593 | Screw - Door Asm (4 Per) |
|
- | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 128 | WB27X22622 | Faceplate |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 134 | WB01K10018 | Screw 8-18 (bisque) |
|
- | |||||
| 150 | WB30K10023 | Surface Unit Asm 6" |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WS01L09257 | Bowl Burner 6 (ch) (Replaces: WB31K10265) |
|
Immediately | $ 14.86 | ||||
| 156 | WB30K10021 | Surface Unit Asm 8" |
|
- | |||||
| 158 | WS01L09258 | Bowl Burner 8 (ch) (Replaces: WB31K10266) |
|
Immediately | $ 19.54 | ||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 711 | WB03X22540 | Knob Thermostat Asm. |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WS01A01257 | Screw 8-32 Tpt Flr 215 Sn (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 9999 | WB49X21392 | Hinge Service Kit |
|
- | |||||
| 9999 | 31-17110 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-88057 | Pm Owners Manual |
|
- |
