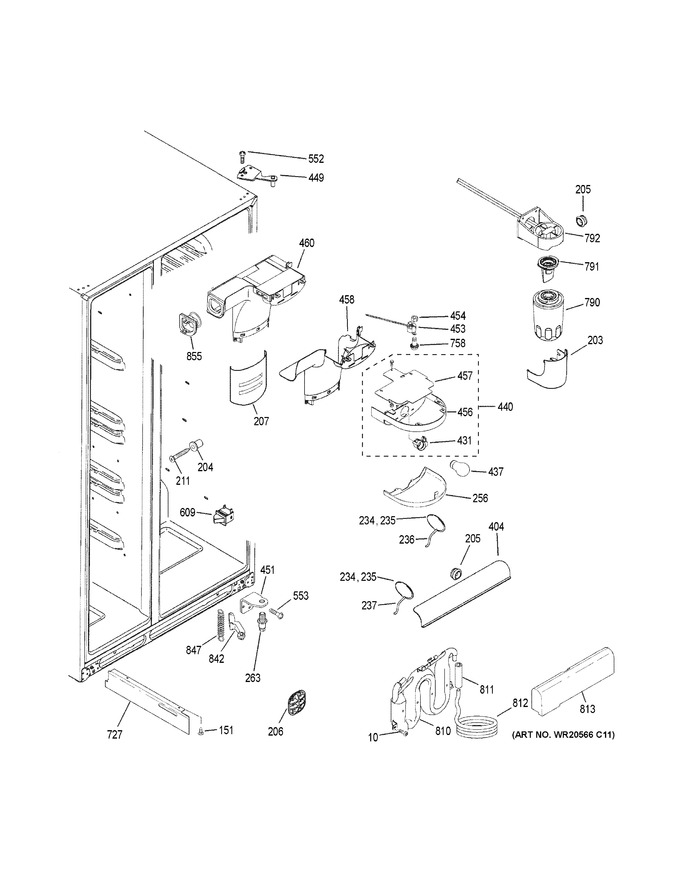

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Screw 10-32 Gxtt Flp 595 S |
|
- | |||||
| 151 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 203 | WR17X28291 | Cover Water Filter |
|
- | |||||
| 204 | WR01A00968 | Support Shelf (Replaces: WR02X12187) |
|
Immediately | $ 3.97 | ||||
| 205 | WR01F00849 | Grommet (Replaces: WR02X10678) |
|
Immediately | $ 3.97 | ||||
| 206 | WR02X10671 | Grille Air Return |
|
- | |||||
| 207 | WR17X10909 | Cover Inlet Discharge |
|
- | |||||
| 211 | WR01X10568 | Scr8-18 Ab Ufl 1 1/2 Ss |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 236 | WR55X10939 | Sensor Temperature |
|
- | |||||
| 237 | WR55X10026 | Sensor Temp Fz |
|
- | |||||
| 256 | WR17X11942 | Shield Light Ff |
|
- | |||||
| 263 | WR01A00453 | Pin Hinge Btm Adj Hollow (Replaces: WR02X12263) |
|
$ 17.01 | |||||
| 404 | WR17X12667 | Diverter Air |
|
- | |||||
| 431 | WR01F00746 | Socket Lamp (Replaces: WR02X10732) |
|
$ 12.31 | |||||
| 437 | STD372402 | Lamp 40w 120v |
|
- | |||||
| 440 | WR17X28555 | Housing Lamp Asm |
|
- | |||||
| 449 | WR13X24863 | Hinge Top & Pin Asm |
|
- | |||||
| 451 | WR13X10159 | Hinge Btm Black |
|
- | |||||
| 453 | WR23X26727 | Harness Ff Lt |
|
- | |||||
| 454 | WR01X10212 | Nut 8-32 |
|
- | |||||
| 456 | WR17X11959 | Housing Lamp Ff |
|
- | |||||
| 457 | WR17X12201 | Reflector Ff Light |
|
- | |||||
| 458 | WR17X12881 | Cover Ff Inlet |
|
- | |||||
| 460 | WR01L00727 | Cover Asm Ff Inlet (Replaces: WR49X10251) |
|
$ 69.94 | |||||
| 552 | WR01X10792 | Scr 12-24 Tt Hx 7/8 S |
|
- | |||||
| 553 | WR01A00664 | Scr 12-24 Tt Ovt 1.000 S (Replaces: WR01X10918) |
|
$ 4.20 | |||||
| 609 | WG03A03078 | Switch Light (Replaces: WR23X10530) |
|
Immediately | $ 12.66 | ||||
| 727 | WR17X12295 | Separator Air Hiside |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 790 | PMMWF | Water Filter Canister (Replaces: MWFP) |
|
Immediately | $ 81.88 | ||||
| 791 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 792 | WR17X11028 | Filter Assy And Tube |
|
- | |||||
| 810 | WR01F01814 | Water Tank Disp Asm (Replaces: WR17X11440) |
|
Immediately | $ 26.13 | ||||
| 811 | WR02X11288 | Insul Tube Foam |
|
- | |||||
| 812 | WR17X11439 | Tube Plastic |
|
- | |||||
| 813 | WR01F01096 | Insulation Tank Foam (Replaces: WR17X11620) |
|
$ 15.49 | |||||
| 842 | WR11X10009 | Lever Assy Ff Side Black |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 | |||||
| 855 | WR02X13091 | Duct Asm Ff Transition |
|
- |
