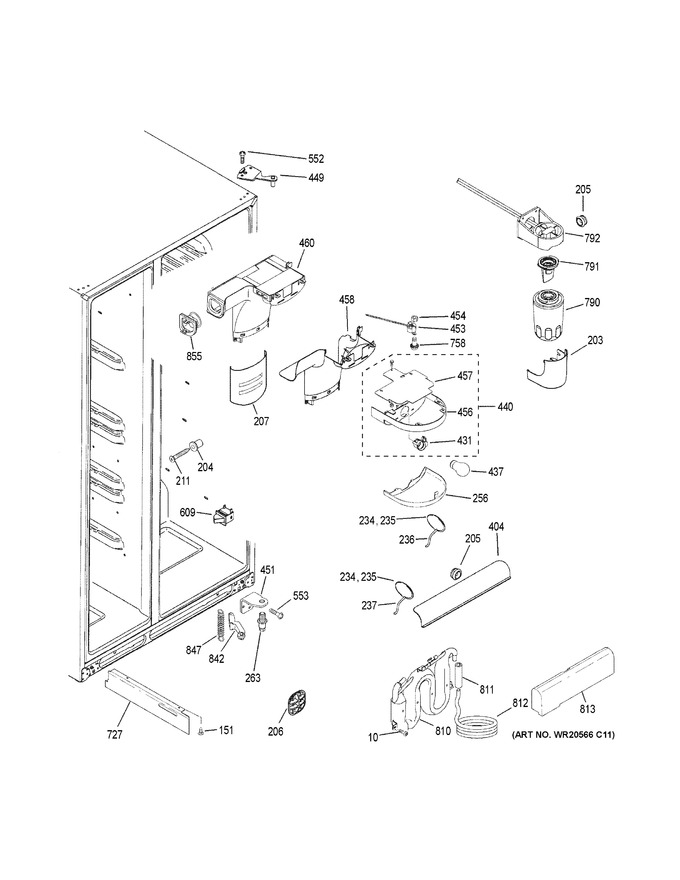

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Screw 10-32 Gxtt Flp 595 S		Appelez-nous	-
151	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
203	WR17X28291		Cover Water Filter		Appelez-nous	-
204	WR01A00968		Support Shelf   (Replaces: WR02X12187)			Immediately	$ 3.97
205	WR01F00849		Grommet   (Replaces: WR02X10678)			Immediately	$ 3.97
206	WR02X10671		Grille Air Return		Appelez-nous	-
207	WR17X10909		Cover Inlet Discharge		Appelez-nous	-
211	WR01X10568		Scr8-18 Ab Ufl 1 1/2 Ss		Appelez-nous	-
234	WR01L04066		Grille Sensor   (Replaces: WR02X10647)				$ 3.97
235	WR01L04393		Shunt Sensor   (Replaces: WR02X10668)			Immediately	$ 15.88
236	WR55X10939		Sensor Temperature		Appelez-nous	-
237	WR55X10026		Sensor Temp Fz		Appelez-nous	-
256	WR17X11942		Shield Light Ff		Appelez-nous	-
263	WR01A00453		Pin Hinge Btm Adj Hollow   (Replaces: WR02X12263)				$ 17.01
404	WR17X12667		Diverter Air		Appelez-nous	-
431	WR01F00746		Socket Lamp   (Replaces: WR02X10732)				$ 12.31
437	STD372402		Lamp 40w 120v		Appelez-nous	-
440	WR17X28555		Housing Lamp Asm		Appelez-nous	-
449	WR13X24863		Hinge Top & Pin Asm		Appelez-nous	-
451	WR13X10161		Hinge Btm Bisque		Appelez-nous	-
453	WR23X26727		Harness Ff Lt		Appelez-nous	-
454	WR01X10212		Nut 8-32		Appelez-nous	-
456	WR17X11959		Housing Lamp Ff		Appelez-nous	-
457	WR17X12201		Reflector Ff Light		Appelez-nous	-
458	WR17X12881		Cover Ff Inlet		Appelez-nous	-
460	WR01L00727		Cover Asm Ff Inlet   (Replaces: WR49X10251)				$ 69.94
552	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
553	WR01A00664		Scr 12-24 Tt Ovt 1.000 S   (Replaces: WR01X10918)				$ 4.20
609	WG03A03078		Switch Light   (Replaces: WR23X10530)			Immediately	$ 12.66
727	WR17X12295		Separator Air Hiside		Appelez-nous	-
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
790	PMMWF		Water Filter Canister   (Replaces: MWFP)			Immediately	$ 81.88
791	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
792	WR17X11028		Filter Assy And Tube		Appelez-nous	-
810	WR01F01814		Water Tank Disp Asm   (Replaces: WR17X11440)			Immediately	$ 26.13
811	WR02X11288		Insul Tube Foam		Appelez-nous	-
812	WR17X11439		Tube Plastic		Appelez-nous	-
813	WR01F01096		Insulation Tank Foam   (Replaces: WR17X11620)				$ 15.49
842	WR11X10011		Lever Assy Ff Side Bisque		Appelez-nous	-
847	WG03F00903		Spring Closure   (Replaces: WR1X2027)				$ 68.16
855	WR02X13091		Duct Asm Ff Transition		Appelez-nous	-
