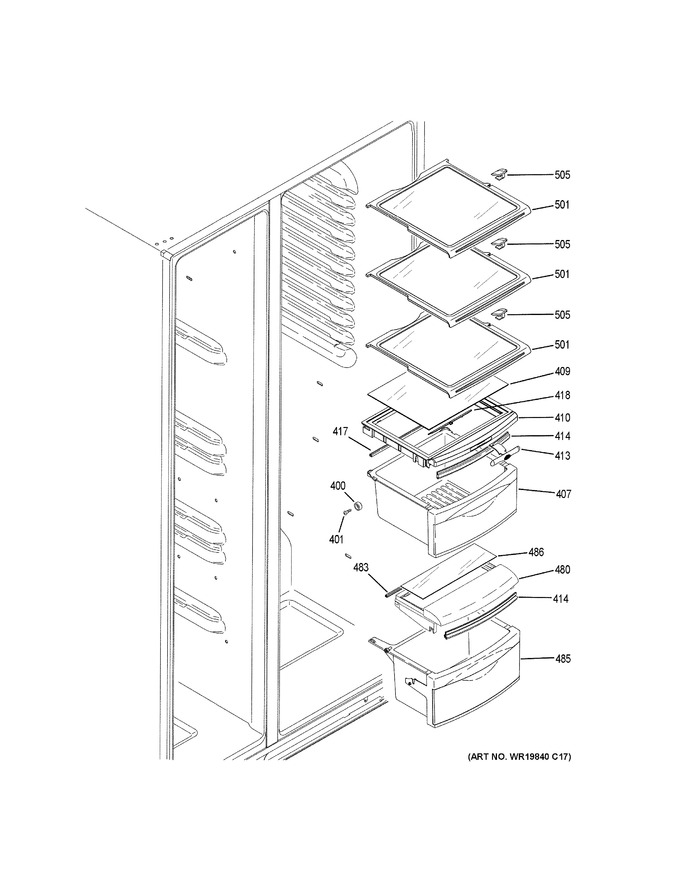

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
401	WR01X10583		Scr 10-16		Appelez-nous	-
407	WR01L09630		Pan Middle Asm   (Replaces: WR32X10574)			Immediately	$ 74.88
409	WR01L01062		Cover Pan Glass   (Replaces: WR32X10156)				$ 55.98
410	WR32X26246		Cover Middle Pan		Appelez-nous	-
413	WR02X10821		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.94
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
480	WR01L00734		Cover Bottom Pan   (Replaces: WR32X10885)				$ 72.06
483	WR14X10197		Gasket Cover Rear		Appelez-nous	-
485	WR32X10860		Pan Bottom Asm		Appelez-nous	-
486	WR01L01060		Cover Pan Glass   (Replaces: WR32X10155)				$ 50.92
501	WR71X10582		Shelf Slideout Asm		Appelez-nous	-
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 28.59

    View Diagram in Separate Window       Print Part List
