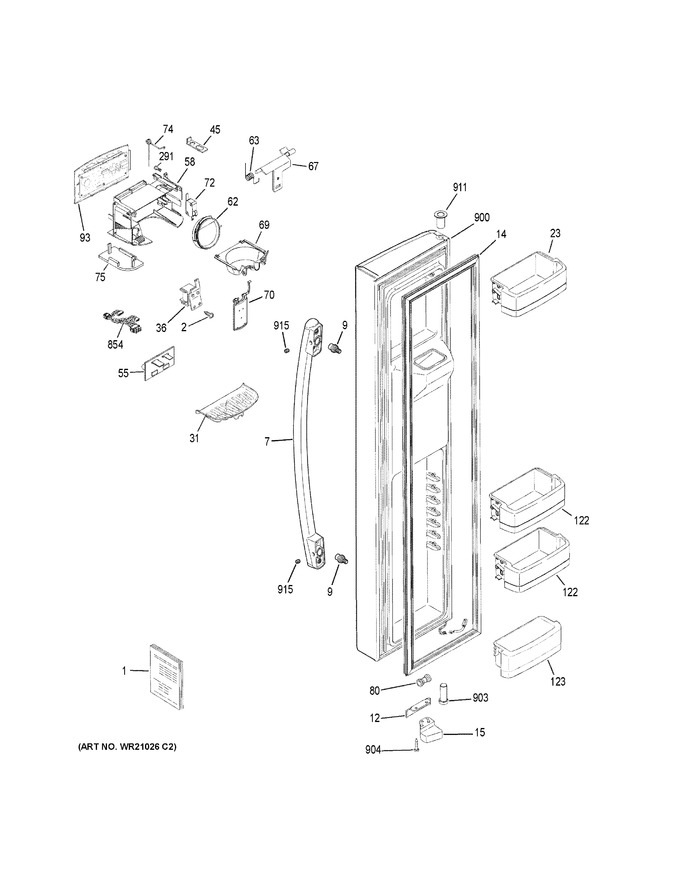

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51948-3		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60646		Pm Guide Owners		Appelez-nous	-
2	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
7	WR12X21070		Arc Handle Asm Dg		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
14	WR24X25780		Gasket Door Fz Dg		Appelez-nous	-
15	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
23	WR71X10953		Module Shelf Fz		Appelez-nous	-
31	WR17X12910		Grill Recess		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
55	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 15.88
58	WR17X12900		Housing Shield Disp		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 65.21
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
69	WR01F00833		Funnel Ice Disp   (Replaces: WR17X12120)				$ 54.09
70	WR17X20449		Paddle Asm		Appelez-nous	-
72	WR23X10783		Switch		Appelez-nous	-
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 23.82
75	WR02X13405		Cover Led Housing Shield		Appelez-nous	-
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 19.06
93	WR55X20689		Interface Dispenser Asm		Appelez-nous	-
122	WR01L02896		Module Shelf Fz   (Replaces: WR71X10291)				$ 26.70
123	WR71X10501		Module Shelf Fz Fixed		Appelez-nous	-
291	WR01A01034		Screw 8-10 Pl Pnp 1/2 S   (Replaces: WR01X10221)				$ 4.20
854	WR23X10695		Harness Recess Disp		Appelez-nous	-
900	WR78X22105		Door Foam Asm Fz		Appelez-nous	-
903	WR01X10234		Thimble Door Btm Fz Black		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
