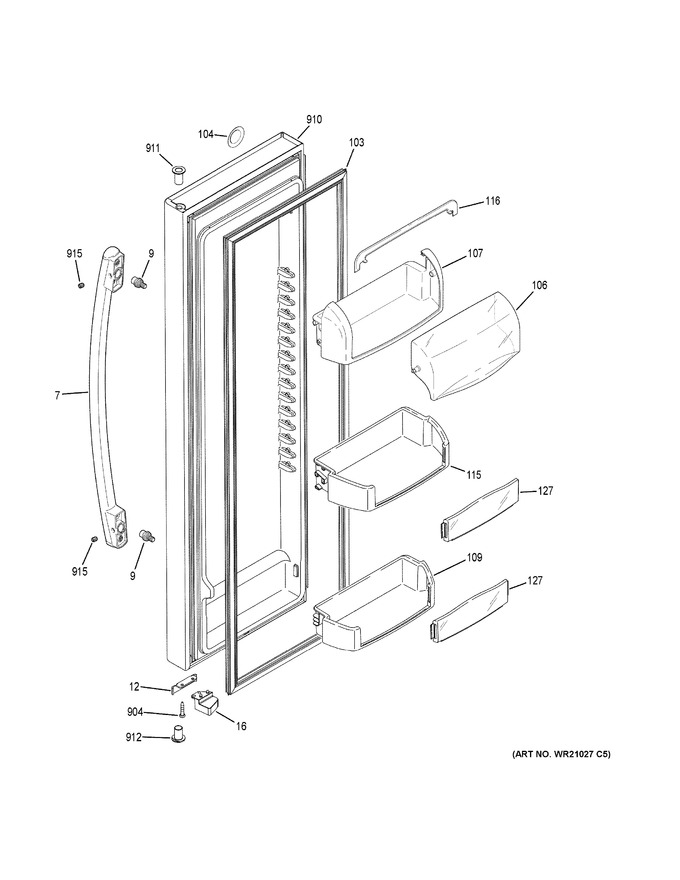

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X29210		Door Handle Black Stainless		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR02X10780		Cam Closure Ff Black		Appelez-nous	-
103	WR24X25779		Gasket Door Ff Dg		Appelez-nous	-
104	WR04X29209		Ge Badge		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10979)				$ 38.81
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10973)			Immediately	$ 65.72
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 68.21
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X29216		Refrigerator - Fresh Food Door Black Sta		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
