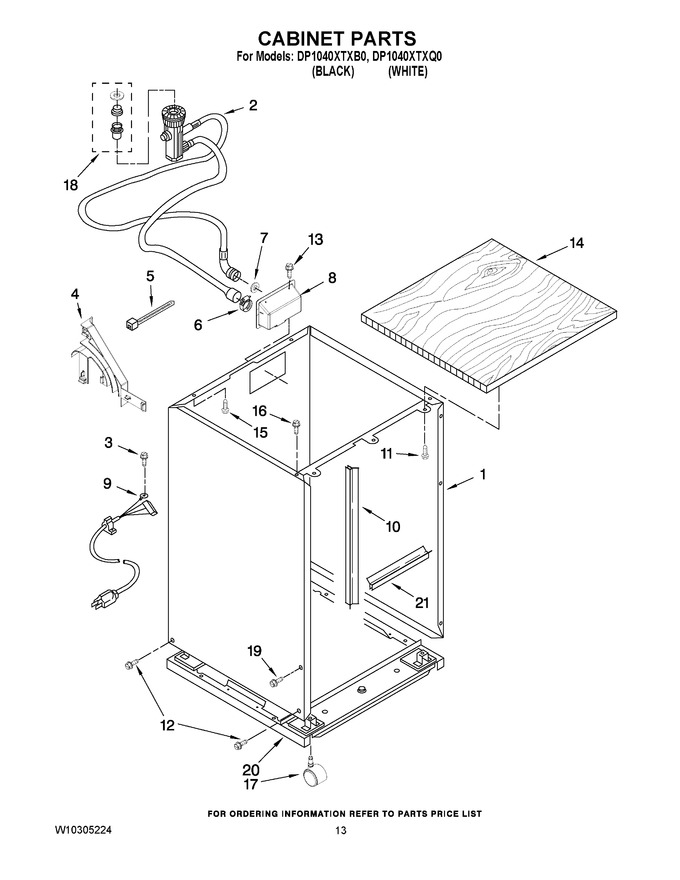

11 - Cabinet Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10219676		Shell Assembly (includes Items 4, 10 & 21) (black)		Appelez-nous	-
1	W10219677		Shell Assembly (includes Items 4, 10 & 21) (white)		Appelez-nous	-
2	W10842407		Coupler Assembly   (Replaces: W10219674)			Immediately	$ 207.55
3	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
4	W10253614		Saddle, Hose		Appelez-nous	-
5	WPW10339879		Clip, Strap   (Replaces: 309330)				$ 8.30
6	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 9.10
7	6-013783		Washer				$ 14.03
8	W10219673		Housing, Hose		Appelez-nous	-
9	W10831279		Cord, Power   (Replaces: W10219671)				$ 151.24
10	W10219682		Protector, Edge Divider				$ 104.73
11	WP3373329		Screw   (Replaces: 3373329)				$ 8.52
12	3371644		Screw				$ 8.65
13	3370826		Screw		Appelez-nous	-
14	WP3373199		Panel, Top   (Replaces: 3373199)				$ 395.30
15	WP681414		Screw   (Replaces: 304428)			Immediately	$ 8.47
16	302251		Screw		Appelez-nous	-
17	WP8559933		Casteer   (Replaces: 8559932)			Immediately	$ 103.49
18	30168LF		Adapter Faucet   (Replaces: 3374592)			Immediately	$ 12.15
19	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
20	W10254984		Frame, Assembly   (Replaces: 8559928)				$ 173.73
21	W10254751		Protecter, Edge Edge				$ 77.24
