Diagram # Part Number Description Series Availability Ships Price Add to Cart
113 WG04A00176 Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067) Special Order $ 3.57

308 WD21X22822 Float Flood Appelez-nous -
451 WD12X23736 User Cleanable Fine Filter Appelez-nous -
453 WD24X10057 Vent Filter Appelez-nous -
454 WD12X10419 Adaptor Filter Appelez-nous -
462 WG04F04609 Drain Tube Asm   (Replaces: WD24X10062) In-Stock Immediately $ 38.64

501 WD22X22879 Arm Spray Lower Asm Appelez-nous -
502 WD22X10093 Filter Coarse Ss Appelez-nous -
506 WD08X21320 Gasket Sump Manifold Appelez-nous -
509 WD12X21677 Plate Floor Manual Appelez-nous -
510 WD21X22838 Stem Flood Appelez-nous -
511 WD01X22825 O Ring Appelez-nous -
512 WD12X22852 Hub Spray Arm Appelez-nous -
514 WD18X22865 Adapter Conduit Appelez-nous -
792 WG04A00073 Clamp   (Replaces: WD01X10104) In-Stock Immediately $ 11.44


    View Diagram in Separate Window     Print Icon   Print Part List

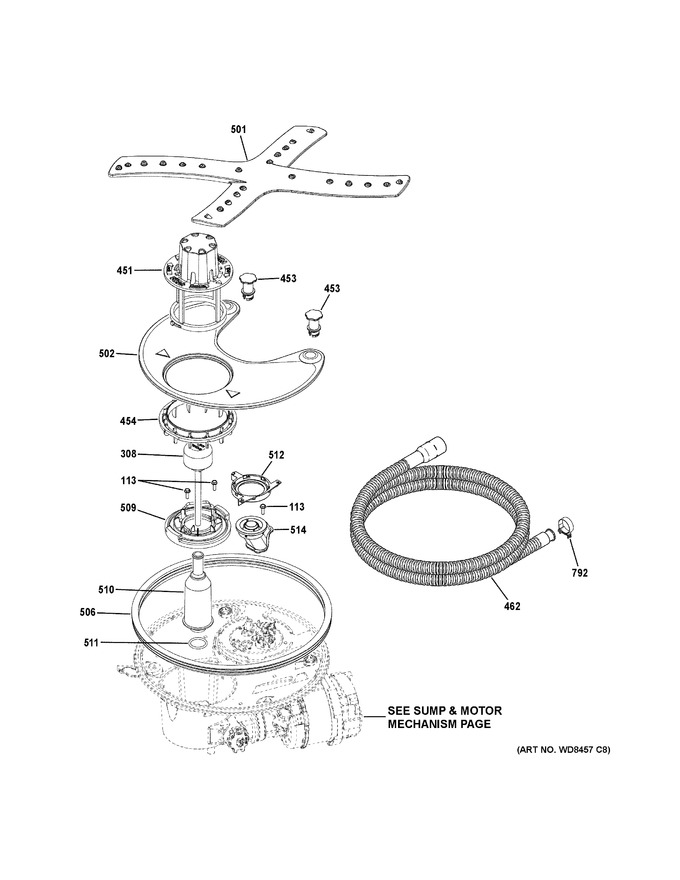

Diagram for PDT855SSJ2SS
