SELECT A DIAGRAM

Body Parts (1)


Body Parts (2)


Escutcheon & Door Assembly


Lower Rack Assembly


Sump & Filter Assembly


Sump & Motor Mechanism


Upper Rack Assembly

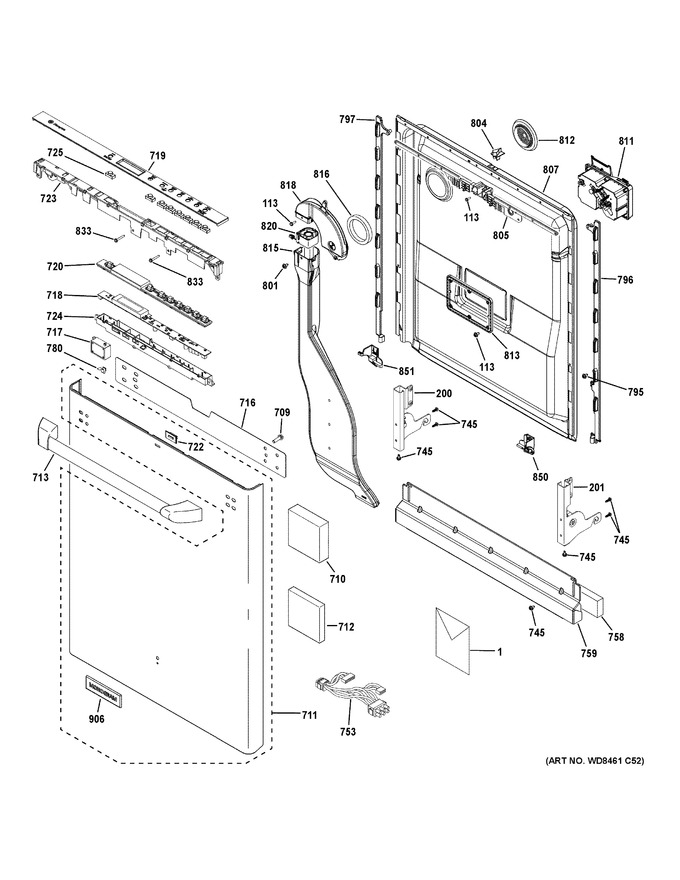

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	165D9739P034		Insert Mini Manual		Appelez-nous	-
1	31-31561		Pm Install Instructions		Appelez-nous	-
1	31-30795		Pm Mini-manual		Appelez-nous	-
1	49-55103		Pm Owners Manual		Appelez-nous	-
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.57
200	WD14X22896		Arm Hinge Asm Lh		Appelez-nous	-
201	WD14X22895		Arm Hinge Asm Rh		Appelez-nous	-
709	WD01X23438		Scr 1/4-20 Tt Ihxw .625		Appelez-nous	-
710	WD01X22930		Block Foam Door		Appelez-nous	-
711	WD34X22938		Outer Door Ss		Appelez-nous	-
712	WD01X22929		Block Foam Door		Appelez-nous	-
713	WD13X20402		Handle Asm		Appelez-nous	-
716	WD01X25279		Handle Bracket		Appelez-nous	-
716	WD01X20403		Handle Bracket		Appelez-nous	-
717	WD01X22942		Speaker		Appelez-nous	-
718	WD21X23708		Configured Ui Control		Appelez-nous	-
719	WD34X22947		Console Cover Asm Monogram		Appelez-nous	-
720	WD21X20299		Silicone Light Pipe		Appelez-nous	-
722	WD09X20398		Lens And Adhesive Asm		Appelez-nous	-
723	WD12X22906		Console Top Control		Appelez-nous	-
724	WD12X20397		Housing Bottom		Appelez-nous	-
725	WD09X20394		Button		Appelez-nous	-
745	WD01X22514		Scr 10-32 Gx Ihxw 9/16 S		Appelez-nous	-
753	WD21X20149		Harness Asm Door		Appelez-nous	-
758	WD27X21334		Insulation Toe Kick		Appelez-nous	-
759	WG04L03643		Toe Kick   (Replaces: WD27X20395)				$ 72.77
780	WD01X22934		Ground Clip Onsert		Appelez-nous	-
781	WD30X25140		Inner Door Insulation		Appelez-nous	-
795	WD02X22628		Screw T15 8-16 Plastite 60-1		Appelez-nous	-
796	WD01X22836		Attach Strip Rh		Appelez-nous	-
797	WG04A02187		Attach Strip   (Replaces: WD01X10634)				$ 18.59
801	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
804	WD13X20245		Striker Latch		Appelez-nous	-
805	WD13X22837		Attachment Strip Top		Appelez-nous	-
807	WD31X22821		Door Inner Ss		Appelez-nous	-
811	WD12X23540		Detergent Disp Sensor Mg		Appelez-nous	-
812	WD24X20587		Cover Vent		Appelez-nous	-
813	WD12X10462		Plate Detergent		Appelez-nous	-
815	WD12X20218		Vent Conduit Asm		Appelez-nous	-
816	WD08X23666		Door Vent Seal		Appelez-nous	-
818	WD12X23557		Transition Piece Asm		Appelez-nous	-
820	WD24X22944		Vent Fan Asm		Appelez-nous	-
833	WD02X20140		Scr 10-16 Pl Pnt 2.25 S		Appelez-nous	-
850	WD12X22835		Trim Door Rh		Appelez-nous	-
851	WD12X22834		Trim Door Lh		Appelez-nous	-
906	WD02X21661		Badge Monogram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
