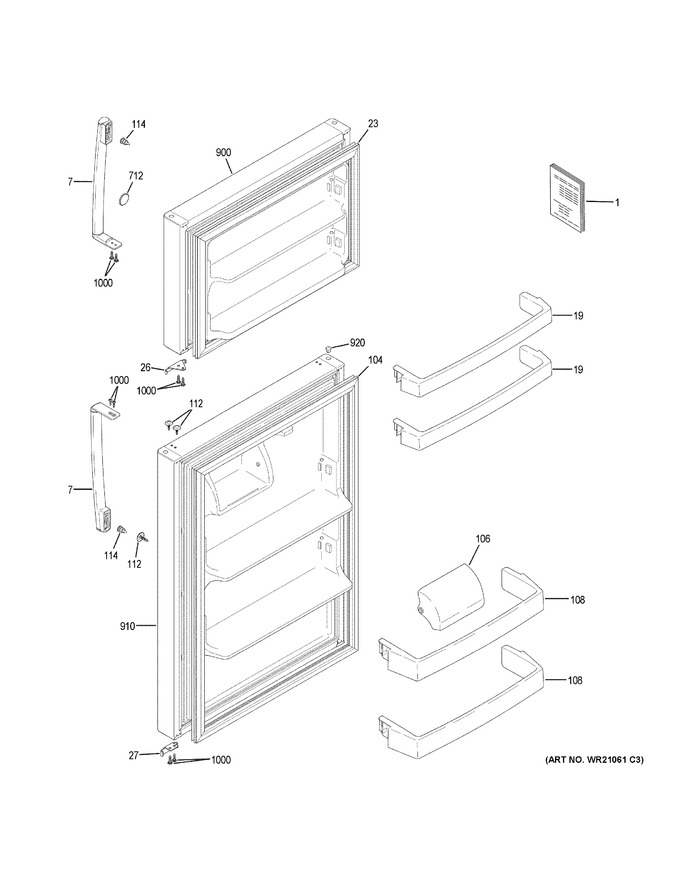

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51966 | Pm Mini Manual |
|
- | |||||
| 7 | WR12X21187 | Handle Plastic Asm Bisque |
|
- | |||||
| 19 | WR71X21149 | Shelf Fixed Fz |
|
- | |||||
| 23 | WR14X29358 | Freezer Door Gasket White |
|
- | |||||
| 26 | WR02X28289 | Freezer Door Stop Bisque |
|
- | |||||
| 27 | WR02X28285 | Refrigerator Door Stop Bisque |
|
- | |||||
| 104 | WR14X29374 | Refrigerator Door Gasket White |
|
- | |||||
| 106 | WR22X28070 | Refrigerator Dairy Door |
|
- | |||||
| 108 | WR17X21154 | Shelf Fixed Ff |
|
- | |||||
| 112 | WR01X21263 | Plug Door Rvsbl Cc |
|
- | |||||
| 114 | WR01X21158 | Fastener Door Handle |
|
- | |||||
| 712 | WR02X25820 | Badge Asm Ge |
|
- | |||||
| 900 | WR78X21189 | Door Foam Asm Fz |
|
- | |||||
| 910 | WR78X21227 | Door Foam Asm Ff |
|
- | |||||
| 920 | WR02X10850 | Plug Button Thimble Bisque |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- |
