SELECT A DIAGRAM

Doors


Freezer Section


Fresh Food Section


Ice Maker

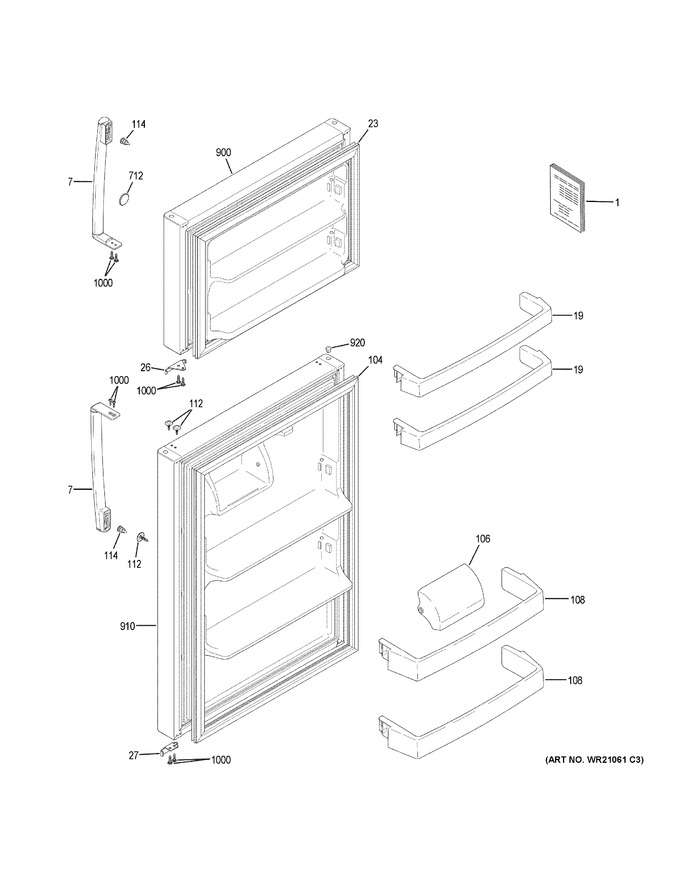

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51966		Pm Mini Manual		Appelez-nous	-
7	WR12X21196		Handle Plastic Asm Black		Appelez-nous	-
19	WR71X21149		Shelf Fixed Fz		Appelez-nous	-
23	WR14X27234		Gasket Door Fz Dg		Appelez-nous	-
26	WR02X28288		Freezer Door Stop Black		Appelez-nous	-
27	WR02X28284		Refrigerator Door Stop Black		Appelez-nous	-
104	WR14X27237		Gasket Door Ff Dg		Appelez-nous	-
106	WR22X28070		Refrigerator Dairy Door		Appelez-nous	-
108	WR17X21154		Shelf Fixed Ff		Appelez-nous	-
112	WR02X21195		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21158		Fastener Door Handle		Appelez-nous	-
712	WR02X25820		Badge Asm Ge		Appelez-nous	-
900	WR78X21194		Door Foam Asm Fz		Appelez-nous	-
910	WR78X21193		Door Foam Asm Ff		Appelez-nous	-
920	WR02X11774		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
