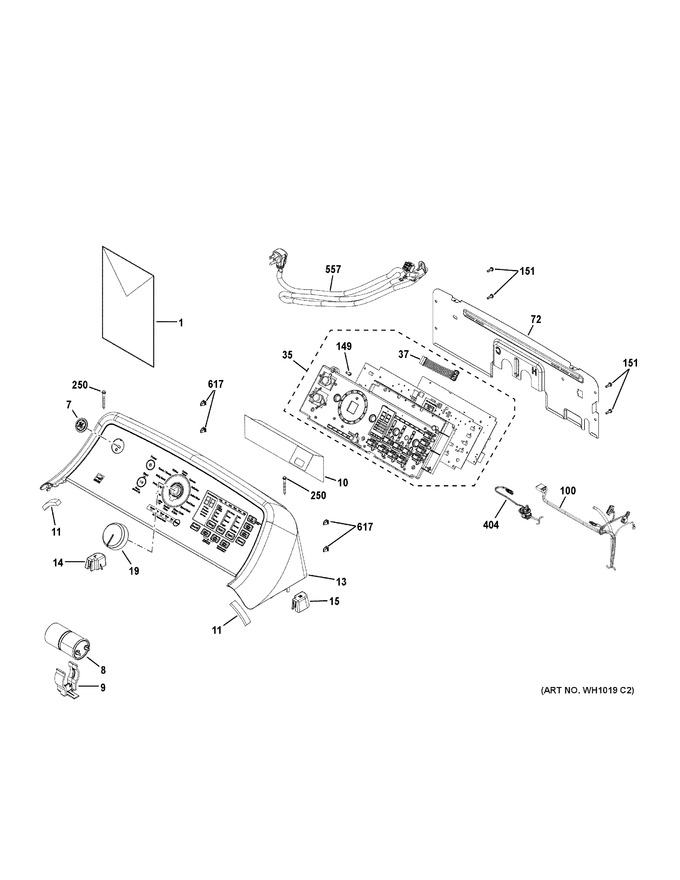

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16935 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 31-3000190 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 49-90577 | Pm Manual Use And Care |
|
- | |||||
| 1 | 49-90576 | Pm Manual Use And Care |
|
- | |||||
| 1 | 31-3000374 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 31-16928 | Pm Sheet Mini Manual |
|
- | |||||
| 7 | WH42X24097 | Badge Ge |
|
- | |||||
| 8 | WH12X24103 | Capacitor |
|
- | |||||
| 9 | WH16X24102 | Capacitor Bracket |
|
- | |||||
| 9 | WH13X28838 | Capacitor Bracket |
|
- | |||||
| 10 | WH01X24101 | Control Board Shield |
|
- | |||||
| 11 | WH08X24099 | Backsplash Foam Seal |
|
- | |||||
| 13 | WH42X26700 | Panel Control Asm |
|
- | |||||
| 14 | WH16X24095 | Left Backsplash Support |
|
- | |||||
| 15 | WH16X24096 | Right Backsplash Support |
|
- | |||||
| 19 | WE01X23886 | Knob Asm |
|
- | |||||
| 35 | WH18X26795 | Ui-mc Board Assembly D_service |
|
- | |||||
| 37 | WH19X24055 | Jumper Harness |
|
- | |||||
| 72 | WH10X24054 | Control Rear Panel |
|
- | |||||
| 100 | WH19X27496 | Harness Main Orange |
|
- | |||||
| 100 | WH19X25439 | Harness Main Orange |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 151 | WH02X10126 | Screw 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 250 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 404 | WH19X24141 | Lid Lock Harness |
|
- | |||||
| 557 | WH08X28843 | Power Cord |
|
- | |||||
| 557 | WH19X24142 | Power Cord |
|
- | |||||
| 617 | WR2X8349 | Grommet Scr Closed |
|
- |
