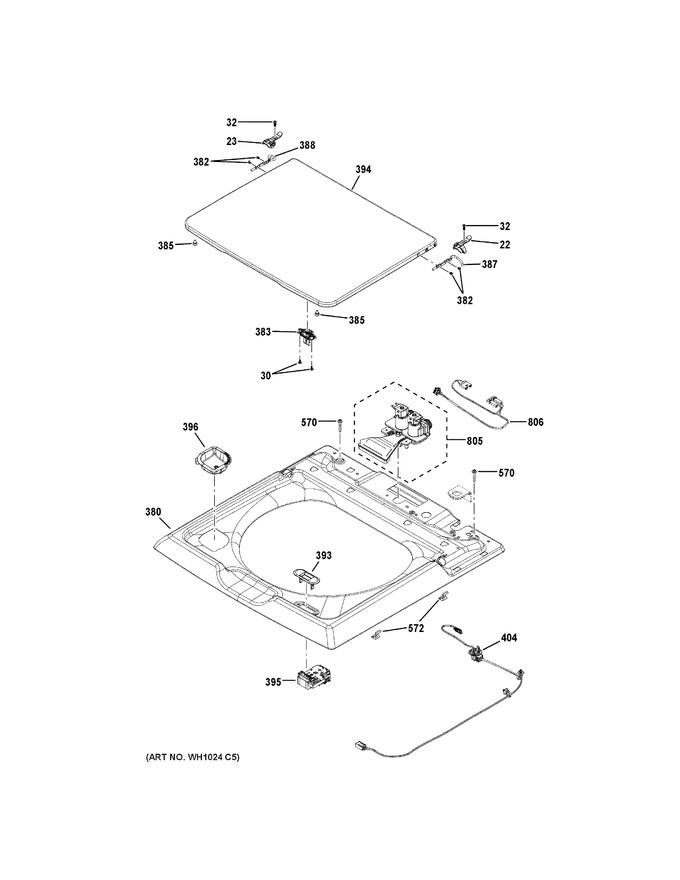

SELECT A DIAGRAM

Cabinet


Controls & Backsplash


Top Panel & Lid


Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	WH02X24389		Large Lid Bushing Right		Appelez-nous	-
23	WH02X24388		Large Lid Bushing Left		Appelez-nous	-
30	WH02X24296		Scr 8-18 Bs Trp 3/8 S		Appelez-nous	-
32	WR01X10065		Screw 10-32 Gxtt Flp 595 S		Appelez-nous	-
32	WH01X28840		Scr 8-18 Ab Tsq 5/8 Ss		Appelez-nous	-
380	WH44X24383		Top Cover White		Appelez-nous	-
382	WH02X24634		Hinge Lid Scr 6-32 Mch Flp .285 Ss		Appelez-nous	-
383	WH02X24399		Lid Lock Striker		Appelez-nous	-
385	WH01X24382		Bumper Lid		Appelez-nous	-
387	WH02X24394		Wireform Hinge Lid Right		Appelez-nous	-
388	WH02X24393		Wireform Hinge Lid Left		Appelez-nous	-
393	WH01X24381		Lid Lock Bezel		Appelez-nous	-
394	WH44X24385		Large Lid White		Appelez-nous	-
395	WG04F13269		Lid Lock Quick Release   (Replaces: WH01X27954)			Immediately	$ 154.98
395	WH01X24114		Lid Lock		Appelez-nous	-
396	WH47X24398		Bleach Cup 2"		Appelez-nous	-
404	WH19X24141		Lid Lock Harness		Appelez-nous	-
570	WH02X24116		Scr 10-32 Gx 1.309 Hwx S		Appelez-nous	-
572	WH02X24143		Lid Lock Harness Clip		Appelez-nous	-
805	WH13X25296		Water Valve Gasket Asm		Appelez-nous	-
805	WH13X26534		Water Valve Gasket Asm		Appelez-nous	-
806	WH19X24384		Water 2 Valve Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
