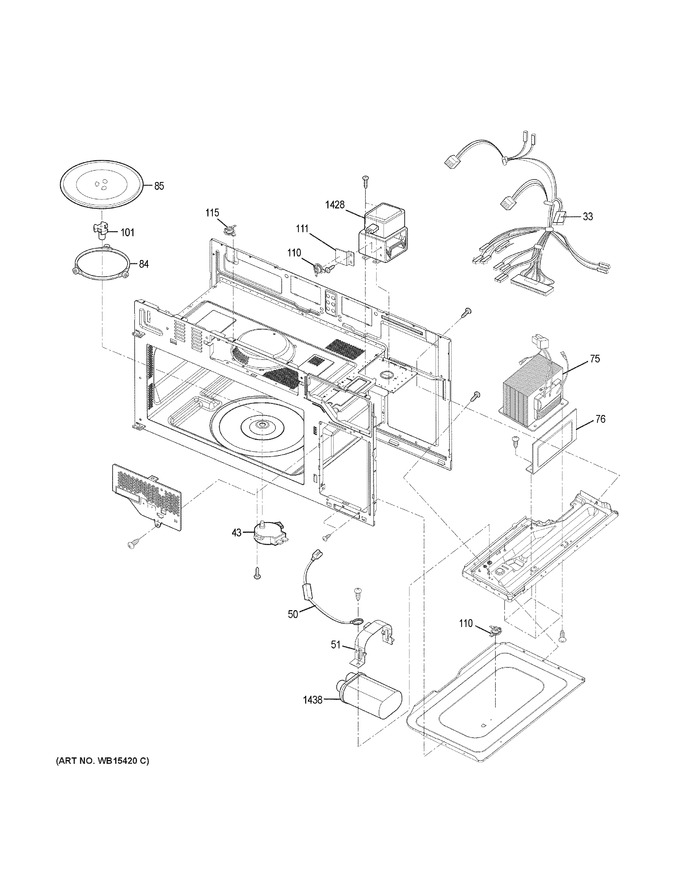

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WB18X33769 | Harness Wire |
|
- | |||||
| 33 | WB18X35985 | Harness Wire |
|
- | |||||
| 33 | WB18X25392 | Harness Wire |
|
- | |||||
| 43 | WB26X10226 | Motor, Ac Synchronous |
|
$ 45.18 | |||||
| 50 | WB18X10449 | Cable, Diode |
|
- | |||||
| 51 | WB34X25381 | Bracket, Capacitor |
|
- | |||||
| 75 | WB24X25398 | Transformer High Voltage |
|
- | |||||
| 76 | WB02X11340 | Hvt Bracket Asm |
|
- | |||||
| 84 | WB06X10875 | Turntable Asm |
|
- | |||||
| 85 | WB49X10129 | Tray,glass |
|
- | |||||
| 101 | WB06X10873 | Shaft,turntable |
|
- | |||||
| 110 | WG02F02808 | Thermostat (Replaces: WB21X10148) |
|
Immediately | $ 17.15 | ||||
| 111 | WB02X10721 | Bracket- Magnetron |
|
- | |||||
| 115 | WB27X10895 | Thermostat |
|
- | |||||
| 1428 | WB27X10927 | Magnetron |
|
- | |||||
| 1438 | WB27X26368 | Capacitor,high Voltage |
|
- |
