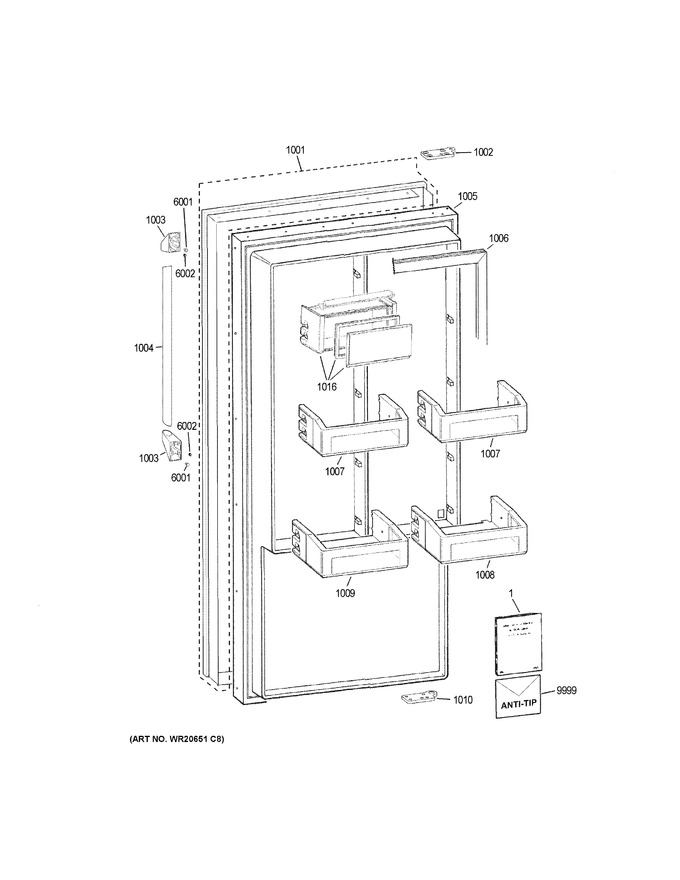

SELECT A DIAGRAM

Cabinet


Door


Machine Compartment


Shelves & Drawers


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60722-2		Pm Owners Manual		Appelez-nous	-
1	31-49140		Pm Install Instructions		Appelez-nous	-
1	31-51884		Pm Mini Manual		Appelez-nous	-
1001	WR78X23784		Wrap Sd Pro Rh		Appelez-nous	-
1002	WR13X25052		Hinge Asm Door Top Rh		Appelez-nous	-
1003	WR02X26879		Handle Cap End		Appelez-nous	-
1004	WG03L01708		Handle Ss   (Replaces: WR12X10842)				$ 99.55
1005	WR78X23777		Door Foamed Asm		Appelez-nous	-
1006	WR78X20986		Door Gasket Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 105.03
1008	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 94.48
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 107.67
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1016	WR71X10142		Assy Dairy Comp		Appelez-nous	-
6001	WR01X21110		Scr 1/4-20x.5 Hex Cap Ss		Appelez-nous	-
6002	WR01A00759		Set Screw   (Replaces: WR02X11769)				$ 22.23
9999	WR49X21844		Anti-tip Hardware Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
