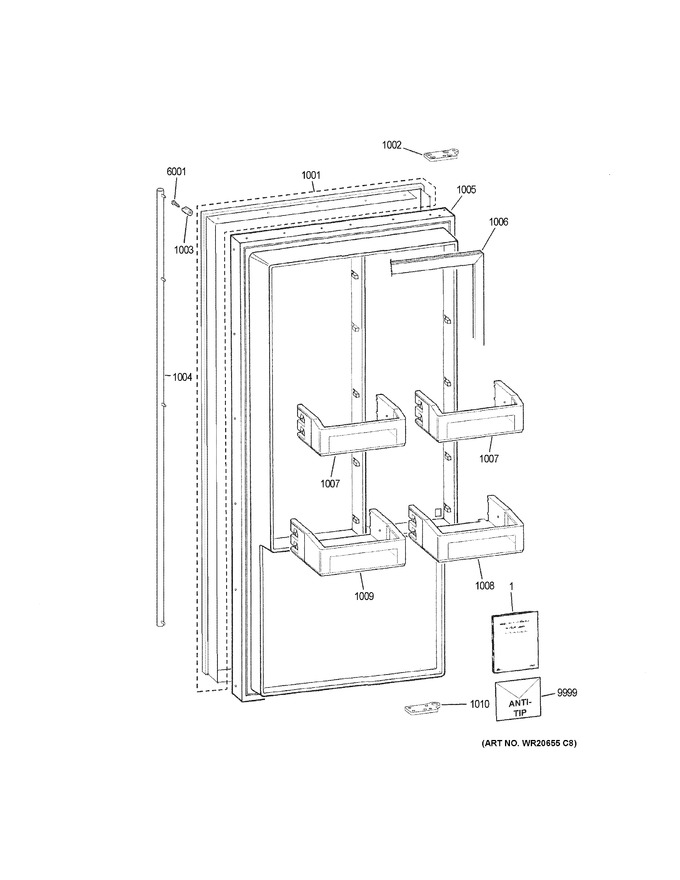

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51977		Pm Mini Manual		Appelez-nous	-
1	31-51885-1		Pm Mini Manual		Appelez-nous	-
1	31-49140		Pm Install Instructions		Appelez-nous	-
1	49-60722-2		Pm Owners Manual		Appelez-nous	-
1001	WR78X23786		Wrap Sd Euro Lh		Appelez-nous	-
1002	WR13X25051		Hinge Asm Door Top Lh		Appelez-nous	-
1003	WR02X27900		Euro Handle Stand Off		Appelez-nous	-
1004	WR12X29415		Euro Handle		Appelez-nous	-
1005	WR78X23826		Door Foamed Asm		Appelez-nous	-
1006	WR78X20986		Door Gasket Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 94.53
1008	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 85.03
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 96.90
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
6001	WR01X21110		Scr 1/4-20x.5 Hex Cap Ss		Appelez-nous	-
9999	WR49X21844		Anti-tip Hardware Asm		Appelez-nous	-
