Body Parts

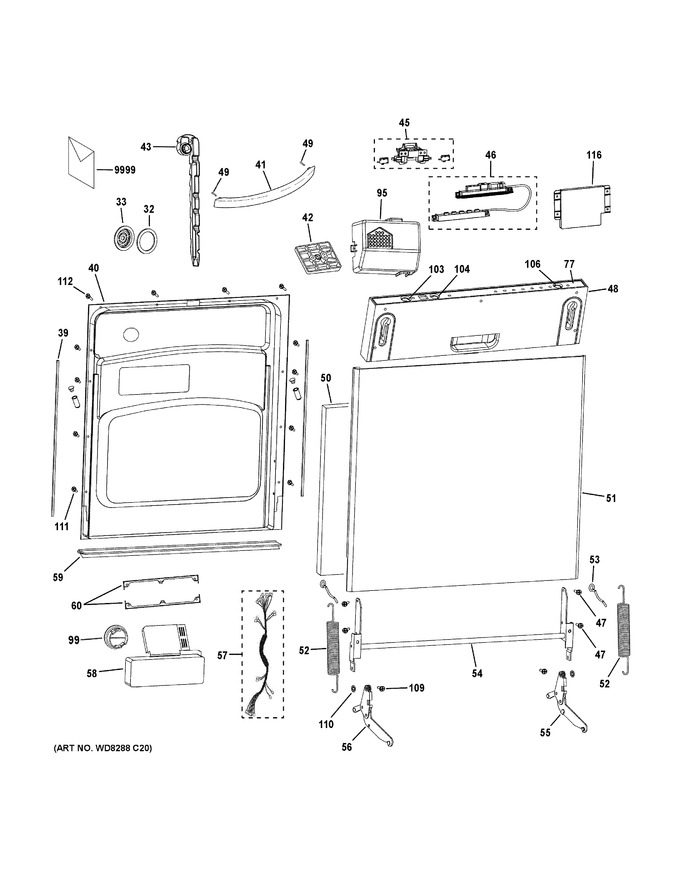

Escutcheon & Door Assembly
Motor-pump Mechanism
Rack Assemblies
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WD01X10320 | O-ring |
|
- | |||||
| 33 | WD01X10309 | Ring Nut W/gasket |
|
- | |||||
| 39 | WD08X10072 | Edge Guard Bk |
|
- | |||||
| 40 | WD31X10103 | Inner Door |
|
- | |||||
| 41 | WD09X23518 | Door Handle Ss |
|
- | |||||
| 42 | WD01X10391 | Handle Bracket |
|
- | |||||
| 43 | WG04F07112 | Duct Vent & Gasket Asm (Replaces: WD24X10044) |
|
$ 92.30 | |||||
| 45 | WD49X24065 | Latch Asm |
|
- | |||||
| 46 | WD21X23537 | Pcb Asm |
|
- | |||||
| 47 | WD02X10119 | Screw |
|
- | |||||
| 48 | WD34X11446 | Control Panel Bb |
|
- | |||||
| 49 | WD02X23519 | Handle Screw |
|
- | |||||
| 50 | WD01X23516 | Door Foam |
|
- | |||||
| 51 | WD27X23521 | Outer Door Panel Asm Ss |
|
- | |||||
| 52 | WD03X10033 | Spring - Door Hinge |
|
- | |||||
| 53 | WD01X10250 | Door Hinge Pin |
|
- | |||||
| 54 | WD14X10031 | Hinge Asm |
|
- | |||||
| 55 | WD14X10020 | Right Hinge Asm |
|
- | |||||
| 56 | WD14X10019 | Left Hinge Asm |
|
- | |||||
| 57 | WD21X23538 | Wiring Harness |
|
- | |||||
| 58 | WD12X10220 | Detergent Dispenser |
|
- | |||||
| 59 | WD08X23517 | Door Gasket |
|
- | |||||
| 60 | WD01X10321 | Bracket Detergent Disp |
|
- | |||||
| 77 | WD34X23520 | Insert Control Panel |
|
- | |||||
| 95 | WD01X10390 | Cover Box Pcb |
|
- | |||||
| 99 | WG04L00093 | Cap Rinse Asm (Replaces: WD12X10122) |
|
$ 39.70 | |||||
| 103 | WD12X23536 | Push Button - On/off |
|
- | |||||
| 104 | WD21X10358 | Push Button - Delay Start |
|
- | |||||
| 106 | WD21X10360 | Push Button-cycle Select |
|
- | |||||
| 109 | WD01X10326 | Joint Pin |
|
- | |||||
| 110 | WD01X10327 | Spring Washer |
|
- | |||||
| 111 | WD02X10139 | Screw-tapping St3.5 X 13 |
|
- | |||||
| 112 | WD02X10165 | Screw St3.5 X 39 |
|
- | |||||
| 116 | WD21X23437 | Bottom Cover Pcb |
|
- | |||||
| 9999 | 49-55110 | Pm Quick Start Guide |
|
- | |||||
| 9999 | 31-30815 | Pm Mini Manual |
|
- | |||||
| 9999 | 31-31575 | Pm Install Instructions |
|
- | |||||
| 9999 | 49-55107 | Pm Owners Manual |
|
- |
