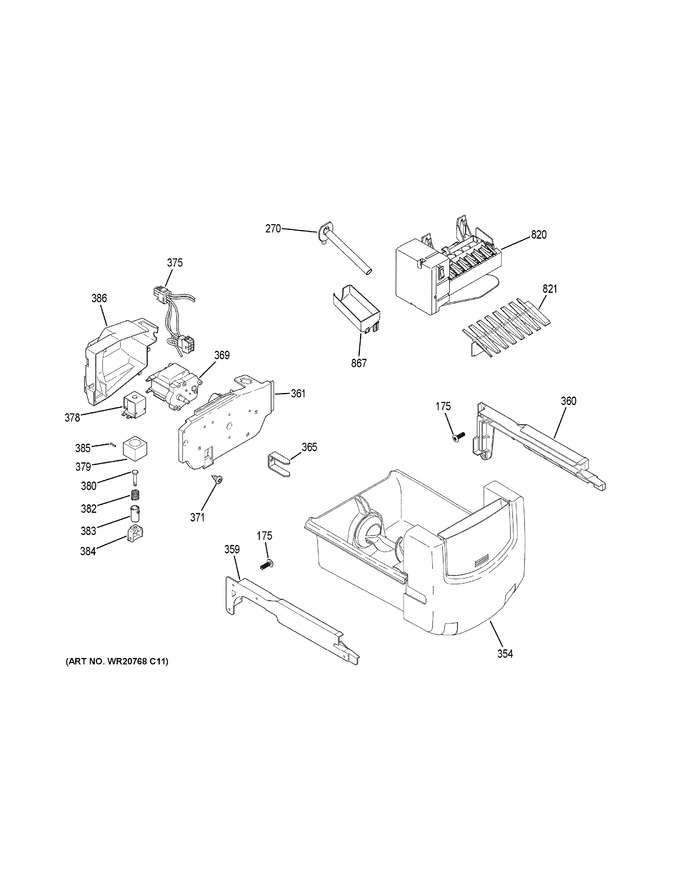

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Screw 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
354	WR17X12138		Bucket & Auger Asm		Appelez-nous	-
359	WR01F03332		Glide Bucket Lh Disp   (Replaces: WR72X10233)				$ 63.53
360	WR72X10380		Glide Bucket Rh Disp		Appelez-nous	-
361	WR01L00869		Cover Motor Back   (Replaces: WR17X12323)				$ 62.03
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
369	WR60X22815		Motor Crusher Disp		Appelez-nous	-
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X26670		Harness Motor Disp		Appelez-nous	-
378	WR62X20426		Solenoid And Arm Asm		Appelez-nous	-
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X12742)				$ 151.81
384	WG04F00407		Stirrup Solenoid Display   (Replaces: WR17X1066)				$ 95.41
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
386	WR02X12491		Cover Auger Motor		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 330.86
821	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10109		Cup Fill Im		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
