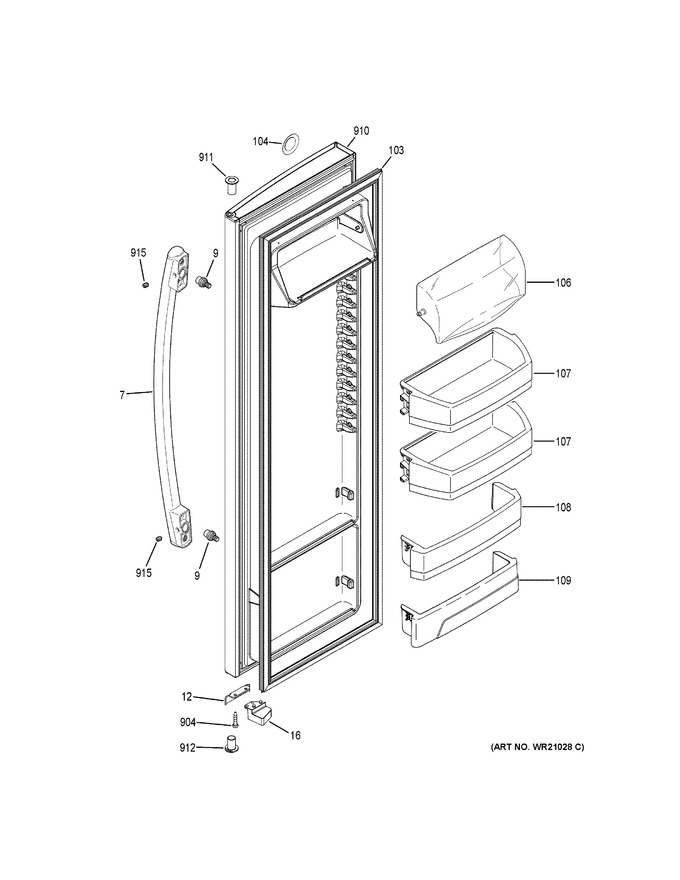

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X21070		Arc Handle Asm Dg		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR02X10780		Cam Closure Ff Black		Appelez-nous	-
103	WR24X25779		Gasket Door Ff Dg		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
107	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
108	WR71X10858		Shelf Module Fixed Ff		Appelez-nous	-
109	WR71X11034		Fixed Shelf Ff		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22104		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
