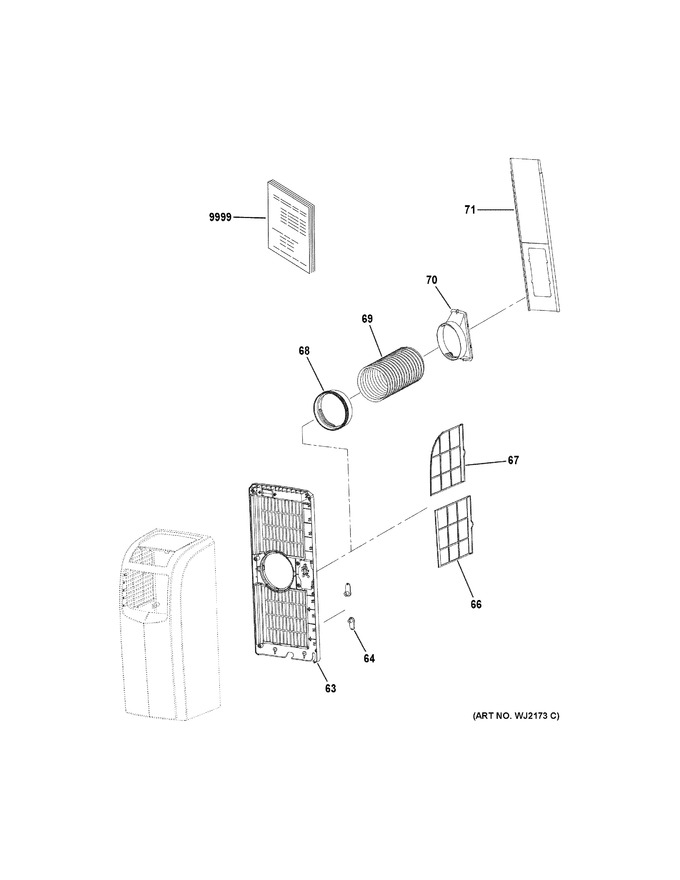

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 55 | WJ01X22912 | Wheel |
|
- | |||||
| 63 | WJ71X23128 | Back Panel |
|
- | |||||
| 64 | WJ01X23132 | Winding Pillar |
|
- | |||||
| 65 | WJ26X22481 | Remote Control |
|
- | |||||
| 66 | WJ85X23131 | Lower Filter |
|
- | |||||
| 67 | WJ85X23130 | Upper Filter |
|
- | |||||
| 68 | WJ65X22911 | Connector |
|
- | |||||
| 69 | WJ65X22920 | Exhaust Hose |
|
$ 68.70 | |||||
| 70 | WJ65X22910 | Connector |
|
$ 17.14 | |||||
| 71 | WJ76X23129 | Window Seal Plate |
|
- | |||||
| 72 | WJ65X24122 | Top Bracket |
|
- | |||||
| 73 | WJ01X24475 | Top Window Bracket |
|
- | |||||
| 74 | WJ01X24474 | Bottom Window |
|
- | |||||
| 75 | WJ01X24473 | Flat Screw |
|
- | |||||
| 76 | WJ01X24472 | Pointed Screw |
|
- | |||||
| 9999 | 49-7781 | Pm Use & Care |
|
- |
