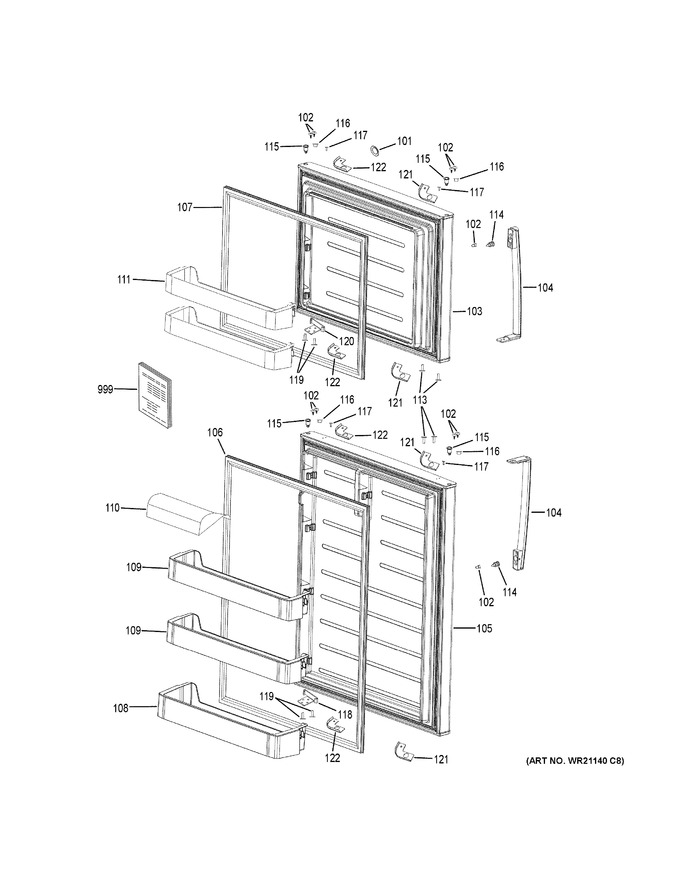

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR04X10222		Badge Asm Ge		Appelez-nous	-
102	WR01X27941		Door Screw Plug Dorian Gray		Appelez-nous	-
103	WR78X29184		Refrigerator - Freezer Door White		Appelez-nous	-
104	WR12X27039		Handle Plastic White		Appelez-nous	-
105	WR78X29182		Refrigerator - Fresh Food Door White		Appelez-nous	-
106	WR14X27299		Gasket Door Ff Ww		Appelez-nous	-
107	WR14X27300		Gasket Door Fz Ww		Appelez-nous	-
108	WR71X27387		Fresh Food Door Gallon Bin		Appelez-nous	-
109	WR71X27450		Fresh Food Door Rail Bin		Appelez-nous	-
110	WR01X27287		Cover Dairy Bin		Appelez-nous	-
111	WR71X27389		Freezer Door Rail Bin		Appelez-nous	-
113	WR01X27333		Screw 3.9mm X 16mm		Appelez-nous	-
114	WR01X27334		Screw Dove Tail		Appelez-nous	-
115	WR01X27355		Door Thimble White		Appelez-nous	-
116	WR01X27354		Door Thimble Plug White		Appelez-nous	-
117	WR01X27330		Screw #8 X 9/16"		Appelez-nous	-
118	WR01X27349		Fresh Food Door Stop		Appelez-nous	-
119	WR01X27336		Screw Ph St 3.9x19		Appelez-nous	-
120	WR01X27350		Freezer Door Stop		Appelez-nous	-
121	WR02X27281		Cap Door Right White				$ 38.48
122	WR02X27280		Cap Door Left White		Appelez-nous	-
999	49-60780		Pm Owners Manual		Appelez-nous	-
999	31-50955		Pm Mini Manual Wiring		Appelez-nous	-
