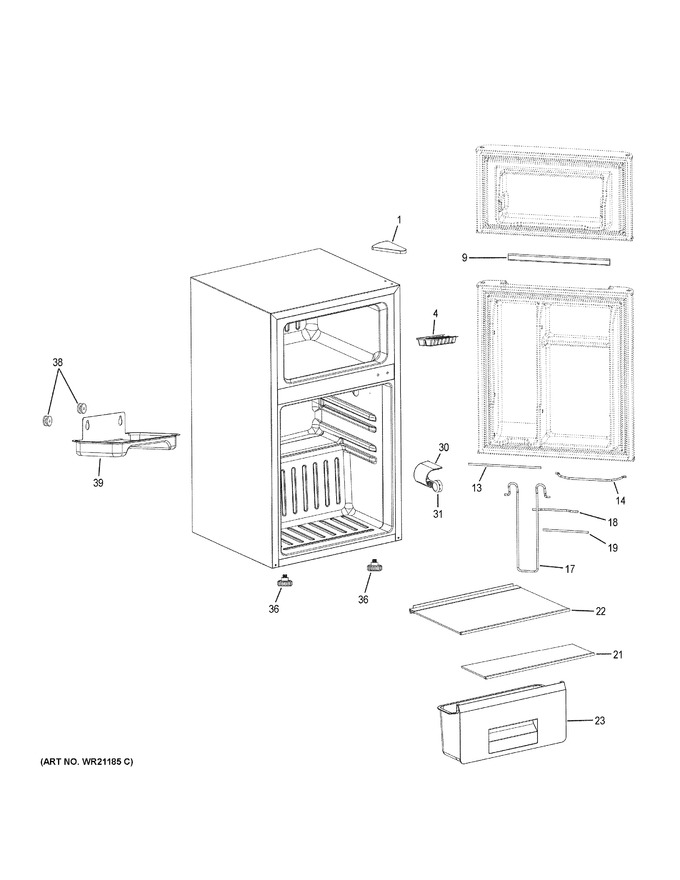

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Refrigertaor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR13X28206 | Top Hinge Cover Black |
|
- | |||||
| 4 | WR02X28200 | Ice Tray |
|
- | |||||
| 9 | WR71X28186 | Freezer Door Rail |
|
- | |||||
| 13 | WR71X28191 | Fresh Food Full Door Rail |
|
- | |||||
| 14 | WR71X28189 | Fresh Food Bottle Rail |
|
- | |||||
| 17 | WR71X28195 | Fresh Food Can Rack |
|
- | |||||
| 18 | WR71X28193 | Fresh Food Door Rail |
|
- | |||||
| 19 | WR71X28201 | Fresh Food Short Door Rail |
|
- | |||||
| 21 | WR71X28202 | Glass Shelf Half |
|
- | |||||
| 22 | WR71X28198 | Glass Shelf Full |
|
- | |||||
| 23 | WR71X28208 | Vegetable Pan |
|
$ 25.37 | |||||
| 30 | WR01X28220 | Light Shield |
|
- | |||||
| 31 | WR01X28218 | Thermostat Knob |
|
- | |||||
| 36 | WR01X28196 | Leveling Leg |
|
- | |||||
| 38 | WR01X28217 | Drain Tray Support |
|
- | |||||
| 39 | WR14X28219 | Drain Tray |
|
- |
