View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Top And Console Parts

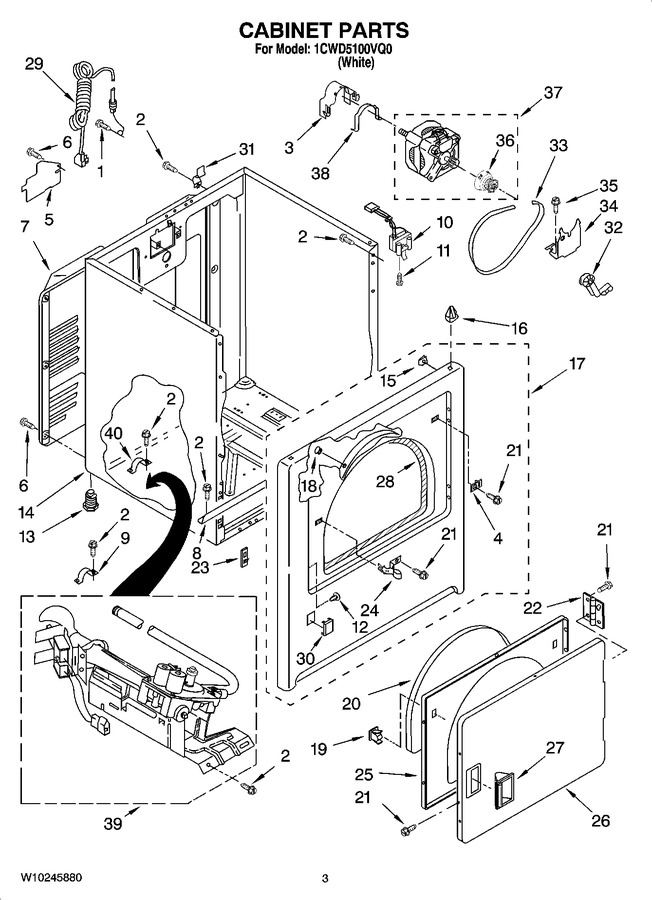

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 8.20 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 4 | WP3403630 | Plug, Strike Door (Replaces: 3403630) |
|
$ 7.91 | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 8 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 9 | 341029 | Clamp-elbow (Replaces: 3980175) |
|
- | |||||
| 10 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404413 | Plug, Hinge Hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 13 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 14 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 15 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 16 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 17 | W10248059 | Panel Front (Replaces: W10224855) |
|
$ 404.96 | |||||
| 18 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 19 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
$ 6.20 | |||||
| 20 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 21 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 22 | WPW10362431 | Hinge & Pin Assembly (Replaces: 3405514) |
|
Immediately | $ 8.28 | ||||
| 23 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 24 | W11429589 | Door, Strike (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 25 | WP3402341 | Door, Inner (Replaces: 3402341) |
|
$ 208.71 | |||||
| 26 | W10861227 | Door, Outer (Replaces: 3402335) |
|
$ 269.26 | |||||
| 27 | WPW10549553 | Handle, Door (Replaces: 8566059) |
|
Immediately | $ 8.21 | ||||
| 28 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 29 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 30 | 3394975 | Plug, Front Panel |
|
$ 5.70 | |||||
| 31 | WP8066217 | Hinge, Top (2) (Replaces: 8066217) |
|
$ 8.21 | |||||
| 32 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 33 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 35 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 36 | WP8066184 | Pulley, 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 37 | 279827 | Motor Assembly 60 Hz. (Replaces: W10194250) |
|
Immediately | $ 191.95 | ||||
| 38 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 39 | W10823508 | Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Burner Breakdown) (Replaces: 8318272) |
|
$ 541.24 | |||||
| 40 | 341029 | Clamp, Pipe |
|
- |
