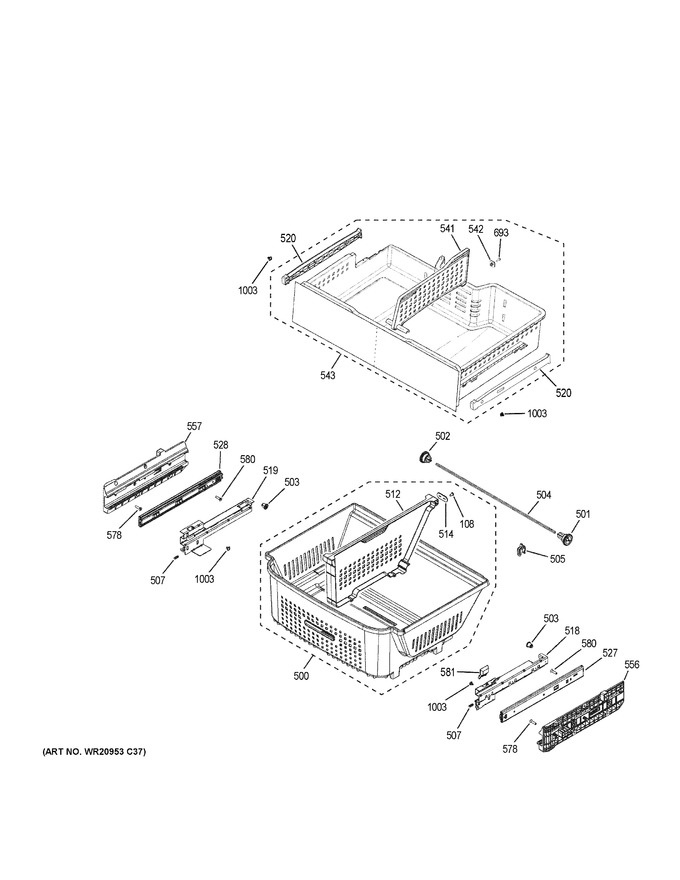

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 500 | WR21X10249 | Basket Bottom Asm |
|
- | |||||
| 501 | WG03L05151 | Gear Lwr Drw Rh (Replaces: WR02X13629) |
|
$ 12.71 | |||||
| 502 | WG03L05152 | Gear Lwr Drw Lh (Replaces: WR02X13630) |
|
$ 19.06 | |||||
| 503 | WG03F03819 | Connnector Gear Pinion (Replaces: WR02X13631) |
|
$ 6.35 | |||||
| 504 | WR02X13670 | Crossbar Pinion |
|
- | |||||
| 505 | WR01X11023 | Pin Cross Bar |
|
- | |||||
| 507 | WR01X11036 | Screw Set Door Fz |
|
- | |||||
| 512 | WR02X13661 | Divider Bottom Basket Fz |
|
- | |||||
| 514 | WR02X13674 | Support Slide Fz |
|
- | |||||
| 518 | WR17X13144 | Slide Bracket Asm Rh |
|
- | |||||
| 519 | WR17X13145 | Slide Bracket Asm Lh |
|
- | |||||
| 520 | WR72X27635 | Glide Support Lh & Rh |
|
- | |||||
| 527 | WR72X10427 | Slide Lower Fz Rh |
|
- | |||||
| 528 | WR72X10428 | Slide Lower Fz Lh |
|
- | |||||
| 541 | WR02X13705 | Divider Basket Upper Fz |
|
- | |||||
| 542 | WR02X13706 | Stopper Divider Fz Upper |
|
- | |||||
| 543 | WR32X26289 | Basket Upper Asm |
|
- | |||||
| 556 | WR72X20645 | Holder Slide Fz Rh |
|
- | |||||
| 557 | WR72X20644 | Holder Slide Fz Lh |
|
- | |||||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s |
|
- | |||||
| 578 | WR01X11012 | Scr 8-18 Ab Hxw 9/16 S |
|
- | |||||
| 580 | WR01X11013 | Scr 10-18 Flt20 3/4 S |
|
- | |||||
| 581 | WG03F01809 | Striker Light Switch (Replaces: WR02X13632) |
|
$ 6.09 | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 693 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 802 | WR04X23038 | Overlay Meat Pan Asm |
|
- | |||||
| 803 | WR32X10867 | Pan Veg Lh Asm |
|
- | |||||
| 806 | WR17X23042 | Pcb Board Deli W/ Ovrly 3mode |
|
- | |||||
| 809 | WR32X10866 | Pan Veg Rh Asm |
|
- | |||||
| 810 | WR72X10440 | Slide Asm Mp Lh |
|
- | |||||
| 811 | WR72X10432 | Support Side Rh |
|
- | |||||
| 813 | WR72X10434 | Support Side Lh |
|
- | |||||
| 814 | WR32X23048 | Diffuser Meat Pan |
|
- | |||||
| 815 | WR32X10868 | Pan Meat Asm |
|
- | |||||
| 818 | WR17X13074 | Divider Meat Pan |
|
- | |||||
| 819 | WR72X23040 | Cover Mp Top Back |
|
- | |||||
| 821 | WR23X10742 | Harness Meat Pan & Sensor |
|
- | |||||
| 823 | WR32X23502 | Cover Mp Front Asm |
|
- | |||||
| 831 | WR72X21071 | Track Side Ff |
|
- | |||||
| 832 | WR72X10429 | Track Center Ff |
|
- | |||||
| 833 | WG03L00853 | Shelf Asm (Replaces: WR32X10878) |
|
$ 80.53 | |||||
| 834 | WR32X23648 | Shelf Asm Tuckaway |
|
- | |||||
| 835 | WR02X13679 | Spacer Track |
|
- | |||||
| 841 | WR55X11141 | Sensor Temperature |
|
- | |||||
| 886 | WR02X13658 | Roller Asm |
|
- | |||||
| 887 | WR72X10431 | Guide Roller Veg Pan |
|
- | |||||
| 888 | WR17X24925 | Damper Veg Pan |
|
- | |||||
| 890 | WG03L05575 | Veg Top Frame Asm (Replaces: WR32X10864) |
|
$ 107.19 | |||||
| 897 | WR32X10865 | Glass Veg Pan |
|
- | |||||
| 899 | WR02X21803 | Bar Reinforcement |
|
- | |||||
| 1003 | WR01X10618 | Scr 8-18 Tpt 1/4 |
|
- |
