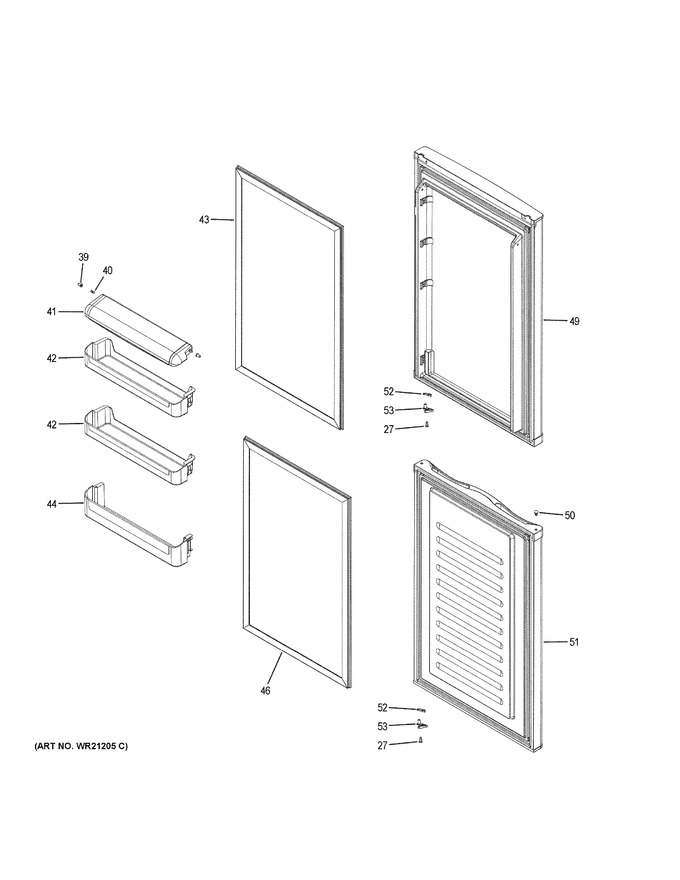

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	WR01X29681		Screw		Appelez-nous	-
39	WR01X29684		Socket		Appelez-nous	-
40	WR01X29677		Pin		Appelez-nous	-
41	WR13X29657		Door Shelf Cover		Appelez-nous	-
42	WR71X29691		Top Door Shelf		Appelez-nous	-
43	WR14X29668		Fresh Food Door Gasket		Appelez-nous	-
44	WR71X29650		Bottom Door Shelf		Appelez-nous	-
46	WR14X29666		Freezer Door Gasket		Appelez-nous	-
49	WR78X29667		Fresh Food Door				$ 283.68
50	WR01X29660		Door Thimble		Appelez-nous	-
51	WR78X29665		Freezer Door		Appelez-nous	-
52	WR01X29658		Door Stop		Appelez-nous	-
53	WR01X29656		Door Cam		Appelez-nous	-
