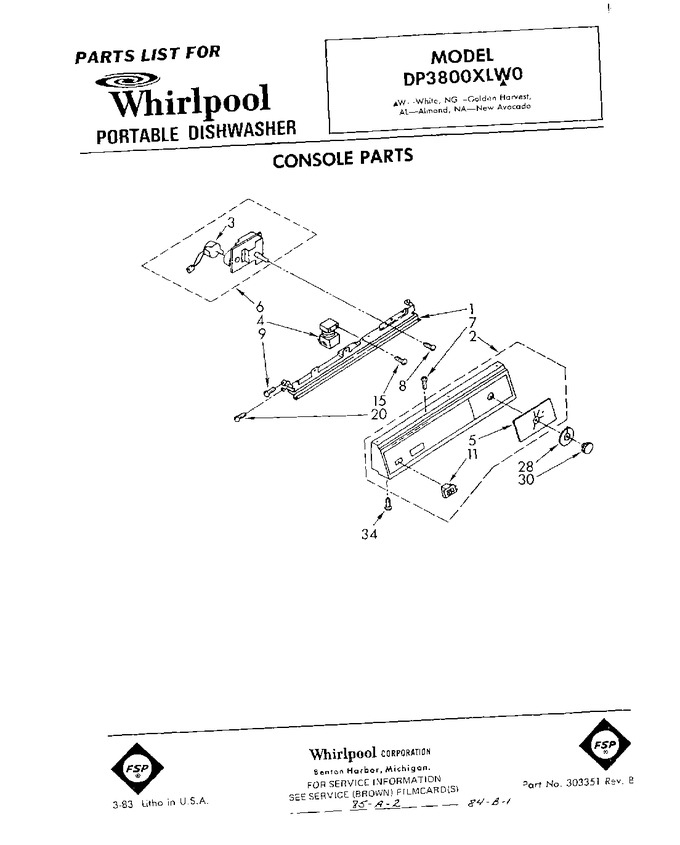

SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Pump And Motor


06 - Dishrack


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Console		Appelez-nous	-
2	303458		Panel, Escutcheon		Appelez-nous	-
3	301074		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
5	303441		Insert, Console		Appelez-nous	-
6	303281		Timer		Appelez-nous	-
7	W10759522		Screw (4)   (Replaces: 162402)				$ 8.24
8	339494		Screw (2)		Appelez-nous	-
9	WP302868		Screw, 8-18 X 1/2 (2)   (Replaces: 302868)			Immediately	$ 8.18
11	WP4314961		Switch, Rocker   (Replaces: 302100)				$ 93.95
15	WP489128		Screw (2)   (Replaces: 98209)				$ 11.40
20	303090		Screw, 8-18 X 5/8 (2)		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
30	301010		Knob		Appelez-nous	-
34	WP487353		Screw, 6-20 X 1/2 (3)   (Replaces: 301502)				$ 7.95
