SELECT A DIAGRAM

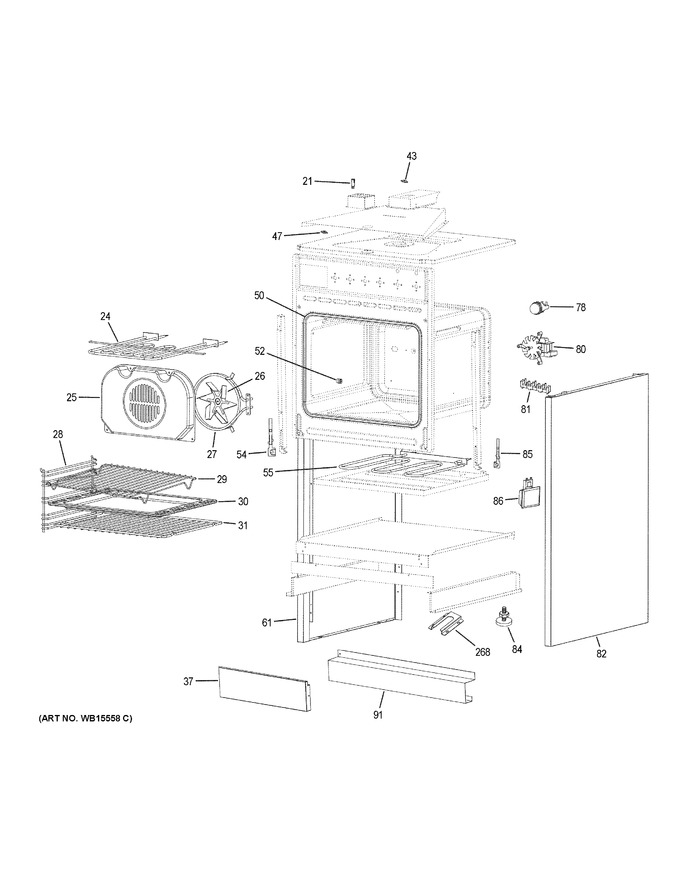

Body Parts


Control Panel & Cooktop


Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	WB25X28403		Hot Light Indicator		Appelez-nous	-
24	WB44X28270		Broil Element		Appelez-nous	-
25	WB34X28278		Convection Fan Cover		Appelez-nous	-
26	WB02X28397		Convection Fan Blade		Appelez-nous	-
27	WB44X28279		Convection Heating Element		Appelez-nous	-
28	WB48X28408		Oven Rack Guide		Appelez-nous	-
29	WB48X28348		Grill Rack		Appelez-nous	-
30	WB32X28296		Grease Collector Pan		Appelez-nous	-
31	WB48X28313		Oven Rack		Appelez-nous	-
37	WB07X28291		Front Bottom Trim		Appelez-nous	-
43	WB24X28282		Cooling Fan Thermostat		Appelez-nous	-
47	WB24X28417		Thermal Cutout		Appelez-nous	-
50	WB35X28399		Door Gasket		Appelez-nous	-
52	WB02X28297		Guide Rail Nut		Appelez-nous	-
54	WB10X28401		Hinge Receiver Lt		Appelez-nous	-
55	WB44X28298		Hidden Bake Element		Appelez-nous	-
61	WB56X28317		Side Panel Lt		Appelez-nous	-
78	WB18X28307		Lamp Socket And Lens Asm				$ 103.46
80	WB26X28280		Convection Motor And Fan Asm		Appelez-nous	-
81	WB18X28416		Terminal Block		Appelez-nous	-
82	WB56X28318		Side Panel Rt		Appelez-nous	-
84	WB02X28308		Leveling Leg		Appelez-nous	-
85	WB10X28402		Hinge Receiver Rt		Appelez-nous	-
86	WB18X28415		Side Lamp Socket And Lens Asm				$ 1.06
91	WB07X28385		Toe Kick		Appelez-nous	-
268	WB02T10578		Bracket Anti-tip Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
