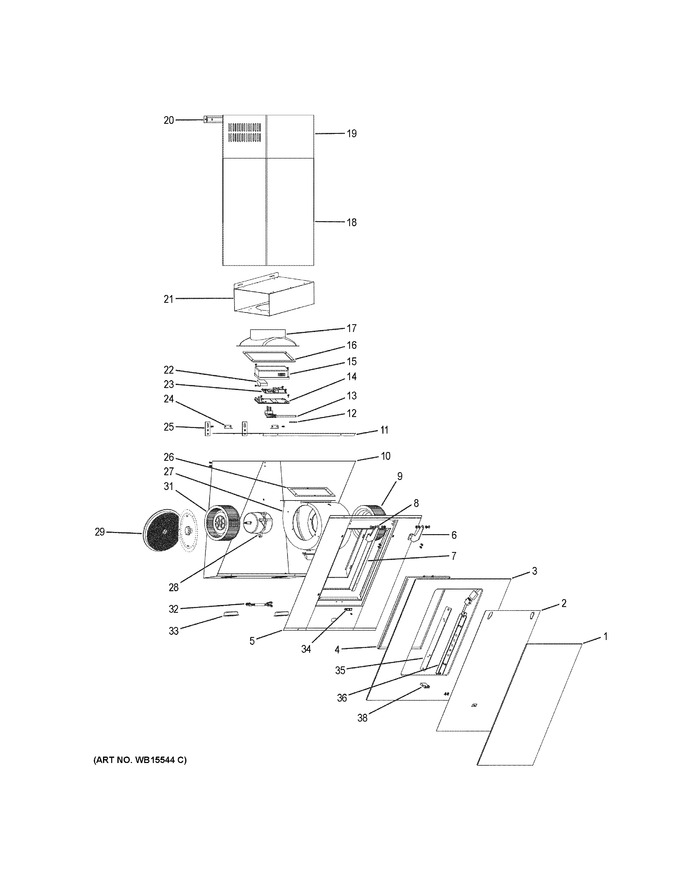

Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB63X30144		Glass Panel		Appelez-nous	-
2	WB34X30143		Glass Panel Bracket		Appelez-nous	-
3	WB07X29034		Outer Glass		Appelez-nous	-
4	WB02X29014		Grease Filter		Appelez-nous	-
5	WB56X30145		Front Panel		Appelez-nous	-
6	WB34X30142		Left Bracket		Appelez-nous	-
7	WB07X29012		Filter Frame		Appelez-nous	-
8	WB34X30141		Right Bracket		Appelez-nous	-
9	WB02X29016		Left Side Impeller		Appelez-nous	-
10	WB63X30140		Shell		Appelez-nous	-
11	WB34X30148		Cover		Appelez-nous	-
12	WB01X30138		Wire Fastener		Appelez-nous	-
13	WB18X29026		Power Cord		Appelez-nous	-
14	WB02X29019		Junction Box Bottom				$ 30.59
15	WB34X29020		Junction Box Cover		Appelez-nous	-
16	WB35X29013		Gasket		Appelez-nous	-
17	WB34X29009		Damper		Appelez-nous	-
18	WB34X29017		Inner Duct Cover		Appelez-nous	-
19	WB34X29023		Outer Duct Cover		Appelez-nous	-
20	WB02X29010		Duct Cover Bracket		Appelez-nous	-
21	WB34X29003		Air Duct		Appelez-nous	-
22	WB26X29007		Capacitor		Appelez-nous	-
23	WB27X29025		Power Board		Appelez-nous	-
24	WB02X29011		Duct Cover Support		Appelez-nous	-
25	WB01X29018		Installation Bracket		Appelez-nous	-
26	WB35X29006		Blower Housing Gasket		Appelez-nous	-
27	WB34X29005		Blower Housing		Appelez-nous	-
28	WB26X29004		Blower Motor		Appelez-nous	-
29	WB02X29008		Charcoal Filter				$ 50.84
31	WB02X29015		Right Side Impeller		Appelez-nous	-
32	WB18X29021		Led Harness Wire		Appelez-nous	-
33	WB25X29022		Led Light Asm With Connector		Appelez-nous	-
34	WB10X30147		Door Catch		Appelez-nous	-
35	WB34X30139		Switch Bracket		Appelez-nous	-
36	WB24X29027		Switch Asm		Appelez-nous	-
38	WB34X30146		Door Catch Bracket		Appelez-nous	-
