SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Door

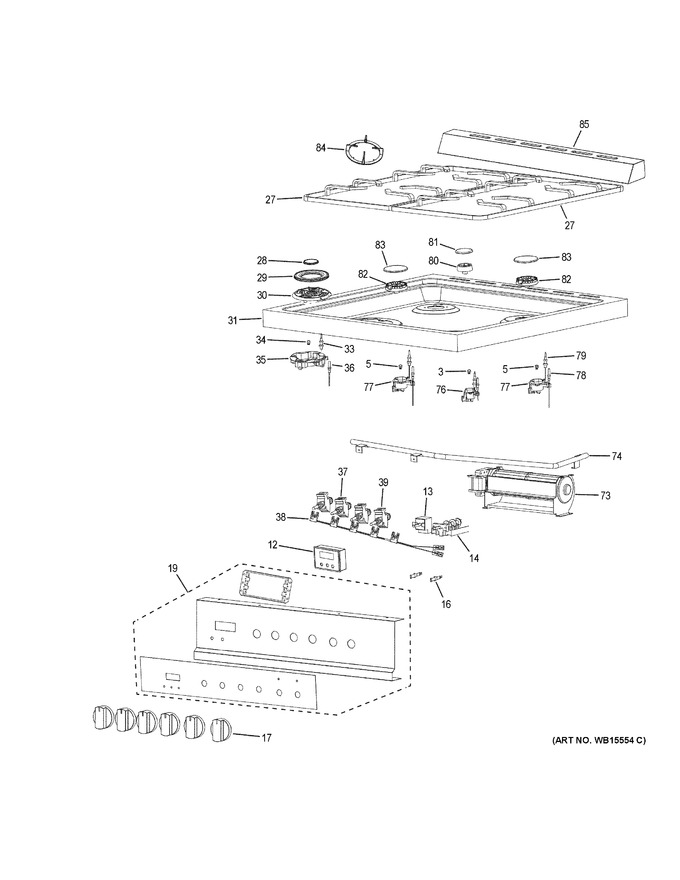

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WB28X30653		Lp Orifice		Appelez-nous	-
3	WB28X30660		Ng Orifice		Appelez-nous	-
5	WB28X30661		Ng Orifice		Appelez-nous	-
5	WB28X30652		Lp Orifice		Appelez-nous	-
12	WB24X28323		Timer		Appelez-nous	-
13	WB24X28314		Oven Thermostat		Appelez-nous	-
14	WB24X28316		Selector Switch		Appelez-nous	-
16	WB25X28309		Light Indicator		Appelez-nous	-
17	WB03X28306		Knob		Appelez-nous	-
19	WB07X30668		Control Panel Overlay		Appelez-nous	-
27	WB31X28295		Grate		Appelez-nous	-
28	WB29X28276		Burner Cap Inner		Appelez-nous	-
29	WB29X28277		Burner Cap Outer		Appelez-nous	-
30	WB16X28273		Burner Base		Appelez-nous	-
31	WB62X28310		Maintop Ss		Appelez-nous	-
33	WB13X28322		Thermocouple		Appelez-nous	-
34	WB28X30651		Lp Orifice		Appelez-nous	-
34	WB28X30659		Ng Orifice		Appelez-nous	-
35	WB28X28301		Injet		Appelez-nous	-
36	WB13X28299		Ignitor With Wire		Appelez-nous	-
37	WB21X28293		Gas Valve		Appelez-nous	-
38	WB18X28319		Switch Harness Asm		Appelez-nous	-
39	WB21X28294		Gas Valve		Appelez-nous	-
73	WB26X28281		Cooling Fan		Appelez-nous	-
74	WB28X28311		Manifold		Appelez-nous	-
76	WB28X28302		Injet		Appelez-nous	-
77	WB28X28303		Injet		Appelez-nous	-
78	WB13X28300		Ignitor With Wire		Appelez-nous	-
79	WB13X28321		Thermocouple		Appelez-nous	-
80	WB16X28271		Burner Base		Appelez-nous	-
81	WB29X28274		Burner Cap				$ 75.42
82	WB16X28272		Burner Base		Appelez-nous	-
83	WB29X28275		Burner Cap		Appelez-nous	-
84	WB31X28325		Wok Adapter		Appelez-nous	-
85	WB34X28326		Backsplash				$ 40.19
