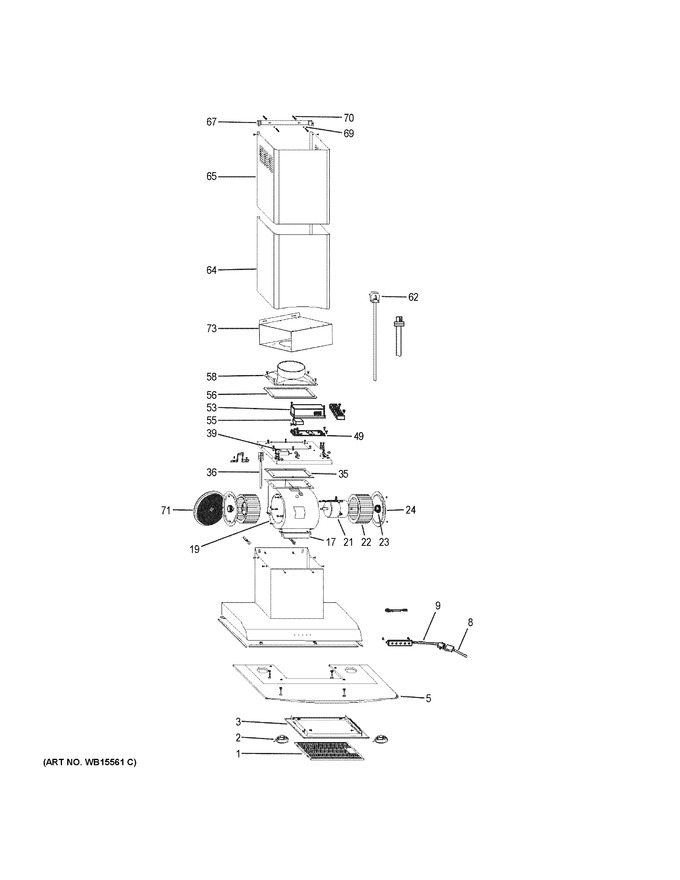

Range Hood
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB02X29041 | Grease Filter |
|
- | |||||
| 2 | WB25X29047 | Light Asm With Connector |
|
- | |||||
| 3 | WB07X29038 | Filter Frame |
|
- | |||||
| 5 | WB07X29040 | Glass Plate |
|
- | |||||
| 8 | WB18X29051 | Switch Harness |
|
- | |||||
| 9 | WB24X29050 | Switch Asm |
|
- | |||||
| 17 | WB32X29042 | Grease Pan |
|
- | |||||
| 19 | WB34X29036 | Blower Housing |
|
- | |||||
| 21 | WB26X29037 | Blower Motor |
|
- | |||||
| 22 | WB02X29016 | Left Side Impeller |
|
- | |||||
| 22 | WB02X29015 | Right Side Impeller |
|
- | |||||
| 23 | WB02X29049 | Right Side Fastener |
|
- | |||||
| 23 | WB02X29046 | Left Side Fastener |
|
- | |||||
| 24 | WB34X29035 | Blower Cover |
|
- | |||||
| 35 | WB35X29006 | Blower Housing Gasket |
|
- | |||||
| 36 | WB18X29043 | Harness Wire |
|
- | |||||
| 39 | WB26X29052 | Transformer |
|
- | |||||
| 49 | WB02X29019 | Junction Box Bottom |
|
$ 30.59 | |||||
| 53 | WB34X29020 | Junction Box Cover |
|
- | |||||
| 55 | WB26X29007 | Capacitor |
|
- | |||||
| 56 | WB35X29013 | Gasket |
|
- | |||||
| 58 | WB34X29009 | Damper |
|
- | |||||
| 62 | WB18X29026 | Power Cord |
|
- | |||||
| 64 | WB34X29044 | Inner Duct Cover |
|
- | |||||
| 65 | WB34X29048 | Outer Duct Cover |
|
- | |||||
| 67 | WB01X29045 | Installation Bracket |
|
- | |||||
| 69 | WB35X29039 | Gasket |
|
- | |||||
| 70 | WB01X29053 | Wall Anchor |
|
- | |||||
| 71 | WB02X29008 | Charcoal Filter |
|
$ 50.84 | |||||
| 73 | WB34X29003 | Air Duct |
|
- |
