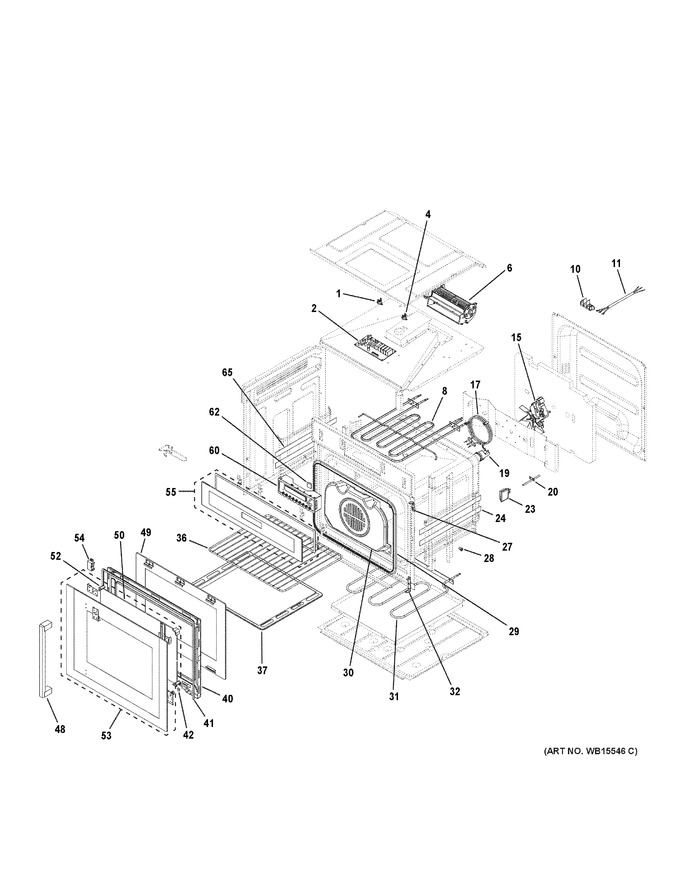

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB24X28054		Thermal Cutout		Appelez-nous	-
2	WB27X28050		Main Board		Appelez-nous	-
4	WB24X28055		Thermal Cutout		Appelez-nous	-
6	WB26X28027		Cooling Fan		Appelez-nous	-
8	WB44X28025		Broil Element		Appelez-nous	-
10	WB18X28052		Terminal Block		Appelez-nous	-
11	WB18X28026		Power Cord		Appelez-nous	-
15	WB26X28028		Convection Motor And Fan Asm		Appelez-nous	-
17	WB44X28024		Convection Heating Element		Appelez-nous	-
19	WB18X28023		Bulb Socket And Lense Asm		Appelez-nous	-
20	WB24X28051		Temperature Sensor		Appelez-nous	-
23	WB18X28048		Side Bulb Socket And Lense Asm		Appelez-nous	-
24	WB48X28041		Guide Rail Asm Rt		Appelez-nous	-
27	WB10X28059		Door Hinge Top		Appelez-nous	-
28	WB01X28032		Guard Rail Nut		Appelez-nous	-
29	WB35X28029		Door Gasket		Appelez-nous	-
30	WB34X28020		Convection Fan Cover		Appelez-nous	-
31	WB44X28039		Hidden Bake Element		Appelez-nous	-
32	WB10X28060		Door Hinge Lower		Appelez-nous	-
36	WB48X28046		Oven Rack		Appelez-nous	-
37	WB32X28036		Grease Collector Pan		Appelez-nous	-
40	WB56X28056		Inner Door Frame		Appelez-nous	-
41	WB02X28035		Inner Door Spacer		Appelez-nous	-
42	WB01X28042		Plug		Appelez-nous	-
48	WB15X28058		Handle Asm		Appelez-nous	-
49	WB56X30673		Inner Door Glass Asm		Appelez-nous	-
50	WB56X28045		Middle Door Glass		Appelez-nous	-
52	WB02X28047		Middle Glass Corner Spacer		Appelez-nous	-
53	WB56X30679		Outer Door Asm				$ 130.12
54	WB10X28022		Door Latch		Appelez-nous	-
55	WB07X30666		Control Panel Overlay		Appelez-nous	-
60	WB27X28049		Oven Control With Harness		Appelez-nous	-
62	WB10X28038		Door Latch Catch		Appelez-nous	-
65	WB48X28040		Guide Rail Asm Lt		Appelez-nous	-
