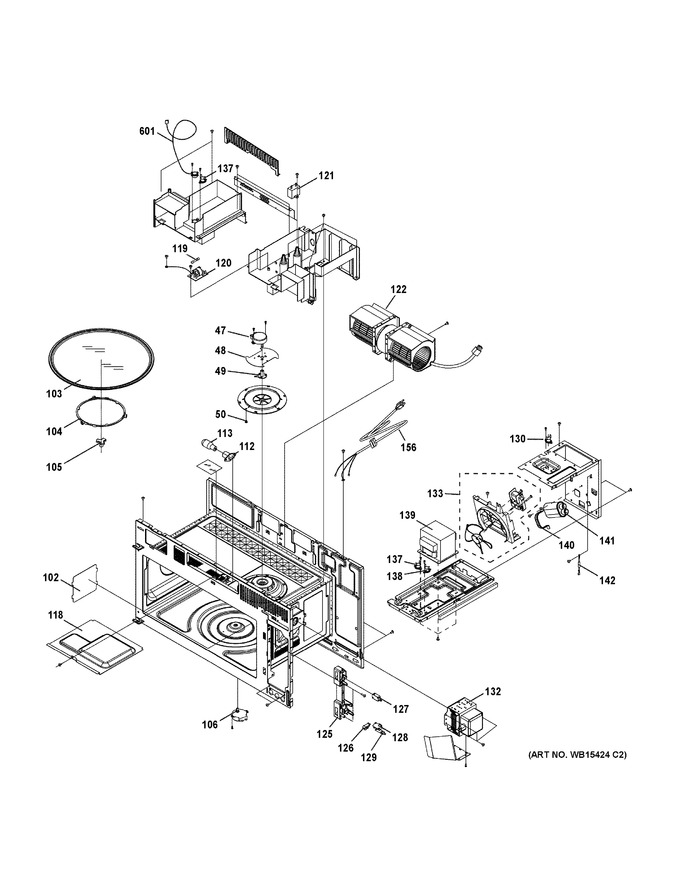

SELECT A DIAGRAM

Control Panel & Door Parts


Interior Parts


Oven Cavity Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
47	WB26X10179		Stirrer Fan Motor		Appelez-nous	-
48	WB02X25612		Stirrer Fan		Appelez-nous	-
49	WB02X25613		Stirrer Shaft		Appelez-nous	-
50	WB06X10613		Rivet		Appelez-nous	-
51	WB34X33693		Stirrer Cover		Appelez-nous	-
102	WB02X25611		Wave Guide Cover				$ 38.06
103	WB63X25610		Tray		Appelez-nous	-
104	WG02A00760		Rotating Ring Asm   (Replaces: WB06X10625)				$ 36.53
105	WB02X25605		Coupler		Appelez-nous	-
106	WG02F13461		Turn Table Motor   (Replaces: WB26X10176)				$ 140.82
112	WB06X10929		Socket Lamp		Appelez-nous	-
113	WG02F11608		Incandescent Lamp,40w   (Replaces: WB25X10030)			Immediately	$ 20.31
118	WB34X25622		Cavity Lamp Cover		Appelez-nous	-
119	WB27X11138		Fuse		Appelez-nous	-
120	WB27X11140		Filter Noise		Appelez-nous	-
121	WB27X11209		Capacitor		Appelez-nous	-
122	WB26X25626		Ventilation Motor		Appelez-nous	-
125	WB10X25607		Latch Board		Appelez-nous	-
126	WB03X10348		Lever Switch				$ 41.45
127	WB24X10146		Micro Switch(stand On)				$ 52.99
128	WB24X10205		Switch Micro, Monitor		Appelez-nous	-
129	WB24X10204		Switch Micro		Appelez-nous	-
130	WB27X11210		Thermostat, 160/0		Appelez-nous	-
132	WB27X11191		Magnetron		Appelez-nous	-
133	WB26X25606		Fan Asm		Appelez-nous	-
137	WB27X11212		Thermostat, 120/0		Appelez-nous	-
138	WB27X11213		Thermostat 70/40		Appelez-nous	-
139	WB24X25617		H.v.transformer		Appelez-nous	-
140	WB34X25615		H.v.capacitor Holder		Appelez-nous	-
141	WB27X25625		H.v.capacitor		Appelez-nous	-
142	WB27X25616		H.v.diode		Appelez-nous	-
156	WB18X25609		Power Cord		Appelez-nous	-
601	WB24X21307		Humidity Sensor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
