Washer
New Model Search:

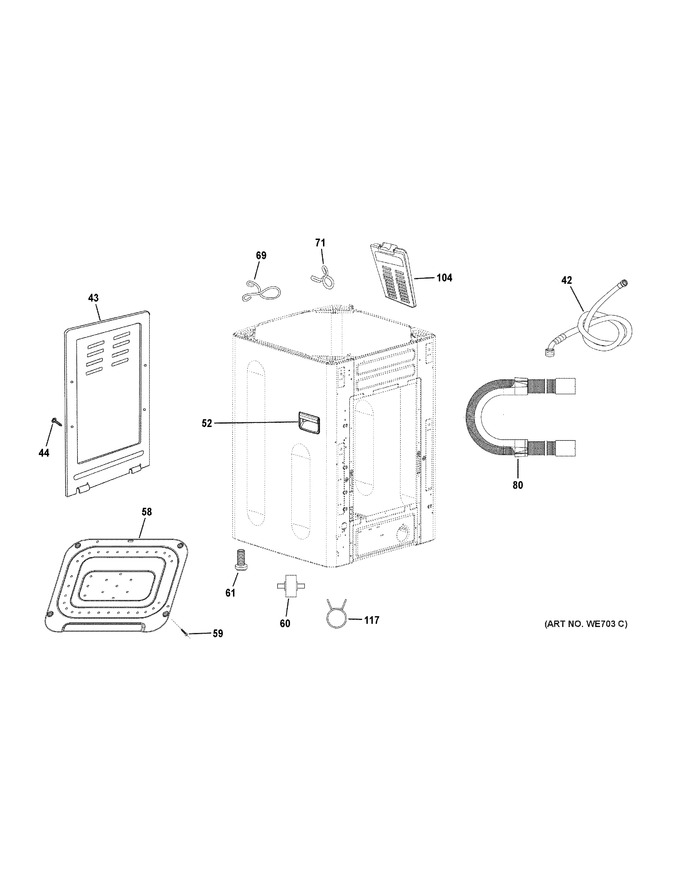

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WH41X27464 | Inlet Fill Hose Cold |
|
- | |||||
| 43 | WH46X27681 | Back Cover |
|
- | |||||
| 44 | WH02X26927 | Capacitor Screws |
|
- | |||||
| 52 | WH01X26974 | Cabinet Handle |
|
- | |||||
| 58 | WH46X27687 | Bottom Cover |
|
- | |||||
| 59 | WH02X27685 | Power Cord Mounting Screw |
|
- | |||||
| 60 | WH46X27459 | Foot Wheel |
|
- | |||||
| 61 | WH46X27684 | Leveling Leg |
|
- | |||||
| 69 | WH41X26955 | Internal Drain Hose Clamp - Pump Inlet |
|
- | |||||
| 71 | WH01X26320 | Internal Drain Hose To Air Chamber Clamp |
|
- | |||||
| 80 | WH41X26963 | Drain Hose Assembly |
|
- | |||||
| 104 | WH01X27265 | Lint Filter |
|
Immediately | $ 18.25 | ||||
| 117 | WH01X27686 | Drain Hose Clamp |
|
- |
