SELECT A DIAGRAM
Dryer
New Model Search:

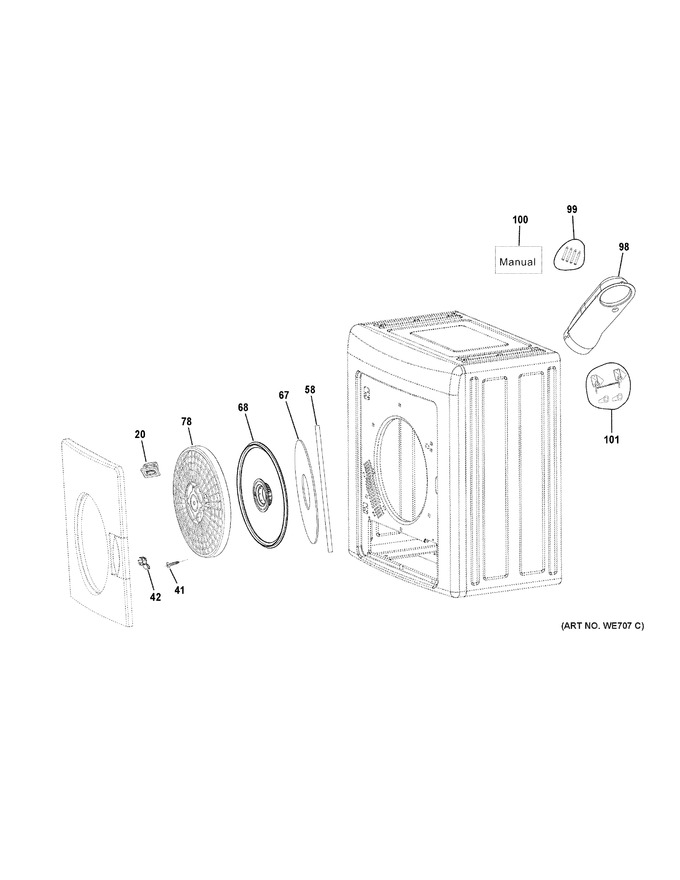

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WE10X27373 | Door Lock |
|
$ 16.08 | |||||
| 41 | WH02X26247 | Screw |
|
$ 1.71 | |||||
| 42 | WE10X27377 | Door Latch |
|
$ 9.45 | |||||
| 58 | WE09X27688 | Gasket |
|
- | |||||
| 67 | WE18X27689 | Lint Screen Felt |
|
- | |||||
| 68 | WE18X27690 | Lint Filter |
|
- | |||||
| 78 | WE18X27691 | Lint Filter Cover |
|
- | |||||
| 98 | WE01X27692 | Exhaust Vent Connector |
|
- | |||||
| 99 | WE02X27693 | Tapping Screw |
|
- | |||||
| 100 | WE01X27694 | Instructions |
|
- | |||||
| 101 | WE01X27695 | Wall Mount Bracket |
|
- | |||||
| 2222 | WE01X27694 | Instructions |
|
- | |||||
| 2222 | WE01X28014 | Pad - Wool Rear |
|
$ 16.08 | |||||
| 2222 | WE01X28004 | Impeller |
|
$ 10.30 | |||||
| 2222 | WE01X28025 | Impeller Cover |
|
$ 23.80 | |||||
| 2222 | WE01X28008 | Lint Filter |
|
$ 14.67 | |||||
| 2222 | WE01X28000 | Gasket |
|
- | |||||
| 2222 | WE18X27691 | Lint Filter Cover |
|
- | |||||
| 2222 | WE01X27989 | Casing - Filter |
|
$ 1.77 | |||||
| 2222 | WH01X27834 | Tapping Screw |
|
- | |||||
| 2222 | WH01X27921 | Wd-0350-37-belt - Fan |
|
$ 12.96 | |||||
| 2222 | WE01X28016 | Plate - Rack |
|
$ 35.55 | |||||
| 2222 | WE01X27984 | Motor |
|
$ 181.29 | |||||
| 2222 | WE01X28018 | Thermostat |
|
$ 11.04 | |||||
| 2222 | WE01X28029 | Wd-3400-04-heater - Ptc |
|
$ 84.35 | |||||
| 2222 | WH01X27914 | Wd-1900-24-cord - Power |
|
- | |||||
| 2222 | WE18X27690 | Lint Filter |
|
- | |||||
| 2222 | WE10X27373 | Door Lock |
|
$ 16.08 | |||||
| 2222 | WE01X27695 | Wall Mount Bracket |
|
- | |||||
| 2222 | WE02X27693 | Tapping Screw |
|
- | |||||
| 2222 | WE01X27997 | Wd-1400-30-capacitor |
|
$ 36.97 | |||||
| 2222 | WE01X27692 | Exhaust Vent Connector |
|
- | |||||
| 2222 | WH01X27923 | Wd-3500-04-holder Filter Screen |
|
$ 10.12 | |||||
| 2222 | WE09X27688 | Gasket |
|
- | |||||
| 2222 | WE01X28003 | Control Panel |
|
- | |||||
| 2222 | WE01X28007 | Handle - Hook |
|
- | |||||
| 2222 | WE01X27995 | Manifold - Exhaust |
|
- | |||||
| 2222 | WE01X28028 | Felt |
|
- | |||||
| 2222 | WE01X28011 | Support Flange |
|
$ 9.59 | |||||
| 2222 | WH01X27841 | Wire Crimp Bushing |
|
- | |||||
| 2222 | WH01X27932 | Wd-5450-31-pulley - Belt |
|
$ 13.60 | |||||
| 2222 | WE18X27689 | Lint Screen Felt |
|
- | |||||
| 2222 | WH01X27912 | Wd-6190-15-seal - Loop |
|
$ 15.30 | |||||
| 2222 | WH01X27935 | Wd-0350-38-dryer Drum Drive Belt |
|
Immediately | $ 83.65 | ||||
| 2222 | WE01X28012 | Gasket |
|
- | |||||
| 2222 | WE01X28021 | Barrel Roll Component |
|
- | |||||
| 2222 | WE10X27377 | Door Latch |
|
$ 9.45 | |||||
| 2222 | WH02X26247 | Screw |
|
$ 1.71 |
