SELECT A DIAGRAM

Control Parts


Door Parts


Oven Cavity Parts

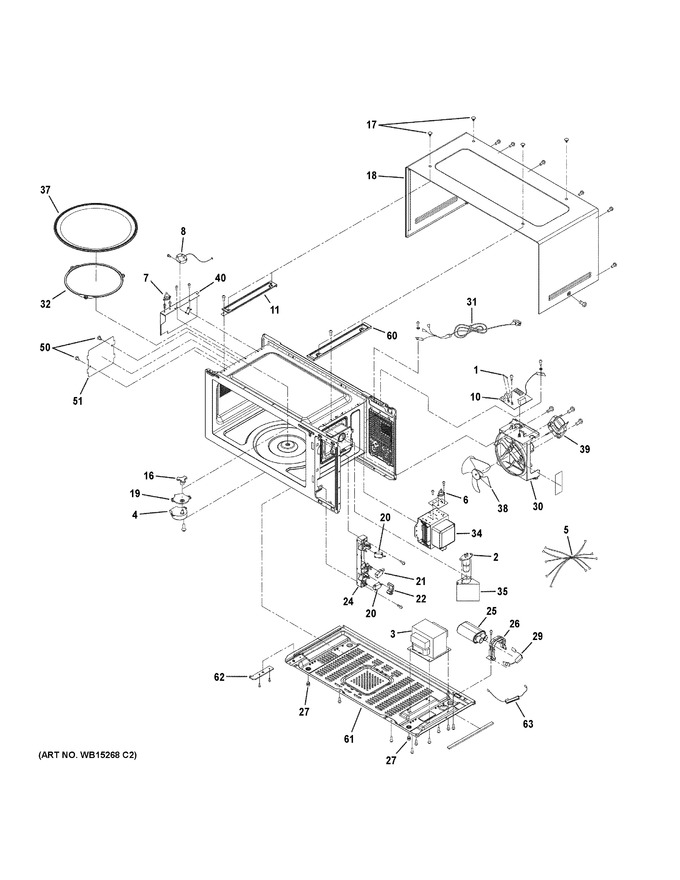

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB27X11151		Fuse		Appelez-nous	-
2	WB25X21309		Lamp		Appelez-nous	-
3	WB26X21335		Transformer, H.v.		Appelez-nous	-
4	WB26X10252		Tray Motor		Appelez-nous	-
5	WB18X21306		Harness		Appelez-nous	-
6	WB20X10054		Thermostat 160/95 *v		Appelez-nous	-
7	WB20X10056		Thermostat 120/0 *h		Appelez-nous	-
8	WB24X21307		Humidity Sensor		Appelez-nous	-
10	WB27X11140		Filter Noise		Appelez-nous	-
11	WB34X21316		Mounting Plate,lh		Appelez-nous	-
16	WB02X29702		Tt Couper		Appelez-nous	-
17	WB01X21329		Plastic Nail		Appelez-nous	-
18	WB56X21321		Outer Case		Appelez-nous	-
18	WB56X32111		Outer Case Dark Dorian Gray		Appelez-nous	-
19	WB35X21305		Gasket		Appelez-nous	-
20	WB02X21313		Microswitch Interlock		Appelez-nous	-
21	WB02X21314		Microswitch Monitor		Appelez-nous	-
22	WB06X10864		Lever Switch		Appelez-nous	-
24	WB14X10049		Board Latch				$ 72.36
25	WB24X21272		Capacitor, H.v.		Appelez-nous	-
26	WB06X10933		Bracket		Appelez-nous	-
27	WB02X21302		Foot		Appelez-nous	-
29	WG02F11955		Hvdiode   (Replaces: WB27X10849)				$ 6.94
30	WB39X10031		Fan Guide		Appelez-nous	-
31	WB18X21330		Power Cord Asm		Appelez-nous	-
32	WB02X21331		Roller Guide Ring		Appelez-nous	-
34	WB26X21312		Magnetron		Appelez-nous	-
35	WB06X10917		Duct		Appelez-nous	-
37	WG02L06371		Tray   (Replaces: WB48X21336)			Immediately	$ 41.69
38	WB06X10860		Fan		Appelez-nous	-
39	WB26X21315		Motor Fan		Appelez-nous	-
40	WB34X21332		Side Shield		Appelez-nous	-
50	WB01X10418		Plastic Nail		Appelez-nous	-
51	WB39X10034		Cover Wave Guid		Appelez-nous	-
60	WB34X21317		Mounting Plate,rh		Appelez-nous	-
61	WB63X21337		Base Plate		Appelez-nous	-
62	WB10X21338		Lower Hinge		Appelez-nous	-
63	WB24X21304		Fuse H.v. Asm		Appelez-nous	-
