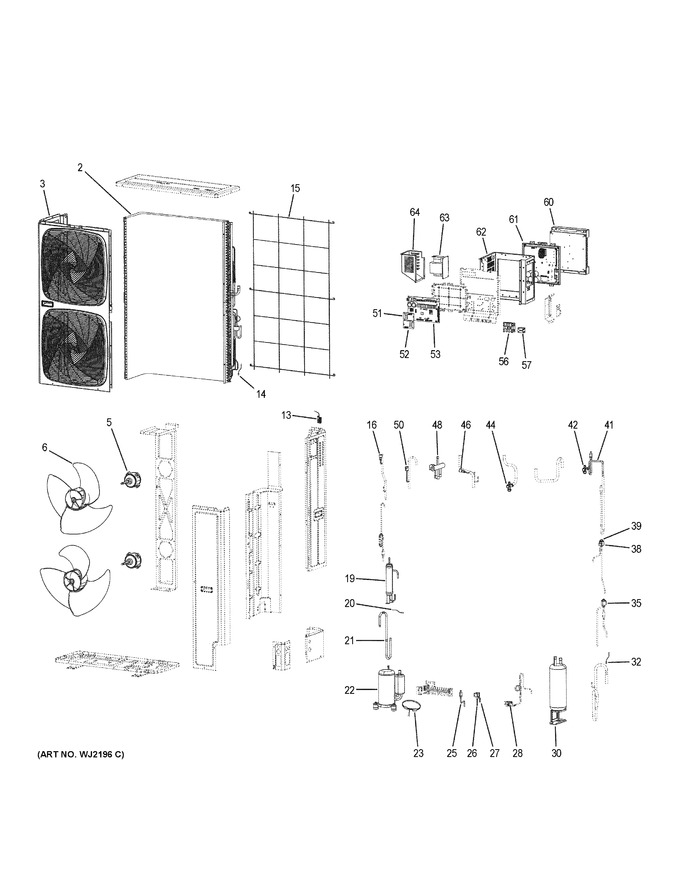

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WJ88X22633		Condensing Coil		Appelez-nous	-
3	WJ76X22658		Outdoor Fan Shroud		Appelez-nous	-
5	WJ94X22643		Fan Motor		Appelez-nous	-
6	WJ73X22642		Fan Blade		Appelez-nous	-
13	WJ26X22657		Outdoor Ambient Temperature Sensor		Appelez-nous	-
14	WJ26X22636		Defrost Temperature Sensor		Appelez-nous	-
15	WJ76X22634		Condsending Coil Guard		Appelez-nous	-
16	WJ26X22645		High Pressure Sensor		Appelez-nous	-
19	WJ53X22654		Oil Separator		Appelez-nous	-
20	WJ26X22637		Discharge Temperature Sensor		Appelez-nous	-
21	WJ53X22671		Compressor Dishcarge Tube		Appelez-nous	-
22	WJ98X22670		Compressor		Appelez-nous	-
23	WJ27X22685		Sump Heater		Appelez-nous	-
25	WJ53X22649		Liquid Line Filter		Appelez-nous	-
26	WJ53X22627		Charging Valve Body		Appelez-nous	-
27	WJ27X22629		Charging Valve Solenoid		Appelez-nous	-
28	WJ27X22626		Charging Port				$ 15.06
30	WJ53X22624		Accumulator		Appelez-nous	-
32	WJ26X22667		Suction Line Temperature Sensor		Appelez-nous	-
35	WJ26X22560		Electronic Expansion Valve		Appelez-nous	-
38	WJ26X22674		Levb Electronic Expansion Valve		Appelez-nous	-
39	WJ26X22675		Levb Electronic Expansion Valve Coil		Appelez-nous	-
41	WJ53X22678		Liquid Tube Stop Valve		Appelez-nous	-
42	WJ53X22650		Liquid Line Service Valve		Appelez-nous	-
44	WJ53X22666		Suction Line Service Valve		Appelez-nous	-
46	WJ26X22652		Low Pressure Sensor		Appelez-nous	-
48	WJ53X22661		Reversing Valve Body		Appelez-nous	-
50	WJ27X22646		High Pressure Switch		Appelez-nous	-
51	WJ26X22682		Star Box Control Board		Appelez-nous	-
52	WJ26X22684		Subcooled Tube Control Board		Appelez-nous	-
53	WJ26X22679		Main Control Board		Appelez-nous	-
56	WJ26X22648		Line Voltage Terminal Block		Appelez-nous	-
57	WJ20X22630		Communication Wiring Terminal Block		Appelez-nous	-
60	WJ26X22638		Display Board		Appelez-nous	-
61	WJ26X29014		Inverter Board		Appelez-nous	-
61	WJ26X22647		Inverter Board		Appelez-nous	-
62	WJ26X22644		Heat Sink		Appelez-nous	-
63	WJ26X22659		Reactor		Appelez-nous	-
64	WJ76X22660		Reactor Cover		Appelez-nous	-
