Cabinet
Controls & Backsplash
Top Panel & Lid
Tub & Motor
New Model Search:

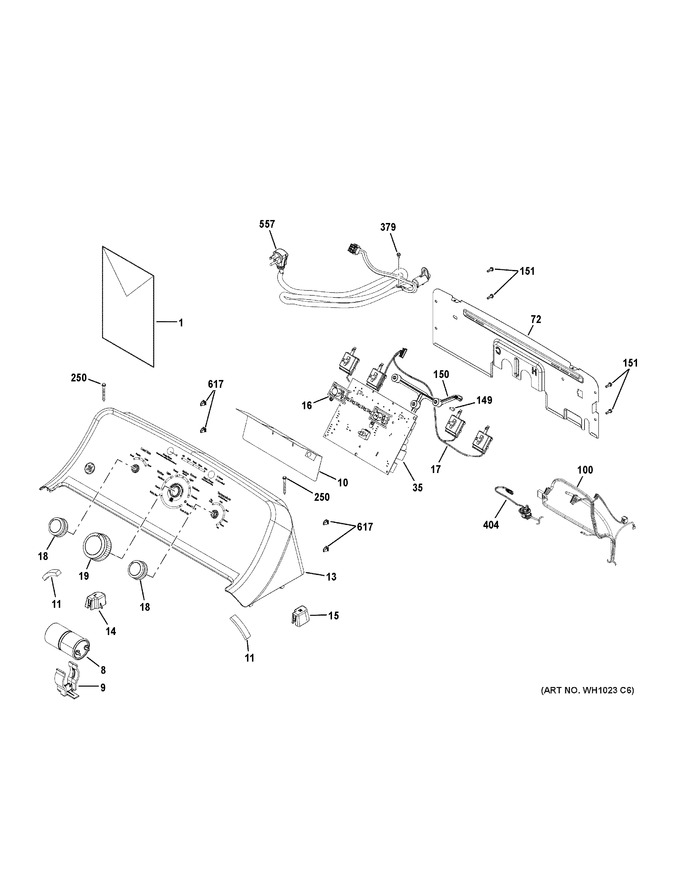

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-3000190 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 31-16772 | Pm Installation Supplement |
|
- | |||||
| 1 | 31-3000374 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 49-90545-1 | Pm Quick Reference Guide |
|
- | |||||
| 1 | 49-90567 | Pm Manual Use And Care |
|
- | |||||
| 1 | 49-90576 | Pm Manual Use And Care |
|
- | |||||
| 1 | 31-16928 | Pm Sheet Mini Manual |
|
- | |||||
| 8 | WH12X24103 | Capacitor |
|
- | |||||
| 9 | WH13X28838 | Capacitor Bracket |
|
- | |||||
| 9 | WH16X24102 | Capacitor Bracket |
|
- | |||||
| 10 | WH01X24396 | Control Board Shield |
|
- | |||||
| 11 | WH08X24099 | Backsplash Foam Seal |
|
- | |||||
| 13 | WH42X26805 | Panel Control Asm |
|
- | |||||
| 14 | WH16X24476 | Left Backsplash Support |
|
- | |||||
| 15 | WH16X24477 | Right Backsplash Support |
|
- | |||||
| 16 | WH01X24376 | Button Tree |
|
- | |||||
| 17 | WH12X26804 | Selector Switch 2 Asm |
|
- | |||||
| 17 | WH12X25295 | Selector Switch 2 Asm |
|
- | |||||
| 18 | WE03X25286 | Knob Options |
|
- | |||||
| 18 | WH01X24378 | Knob Options Asm |
|
- | |||||
| 19 | WH01X25355 | Knob Main |
|
- | |||||
| 19 | WH01X24377 | Knob Main Asm |
|
- | |||||
| 35 | WH18X28176 | Pcba 2015 Le Triac_service |
|
- | |||||
| 35 | WH18X26794 | Pcba 2017 Le Triac Service |
|
- | |||||
| 72 | WH10X24397 | Control Rear Panel |
|
- | |||||
| 100 | WH19X27494 | Harness Main Yellow |
|
- | |||||
| 100 | WH19X25299 | Harness Main Yellow |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 150 | WH16X24375 | Bracket Pcb |
|
- | |||||
| 151 | WH02X10126 | Screw 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 250 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 379 | WE02X10107 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 404 | WH19X24141 | Lid Lock Harness |
|
- | |||||
| 557 | WH08X28843 | Power Cord |
|
- | |||||
| 557 | WH19X24142 | Power Cord |
|
- | |||||
| 617 | WR2X8349 | Grommet Scr Closed |
|
- |
