Room Air Conditioner
New Model Search:

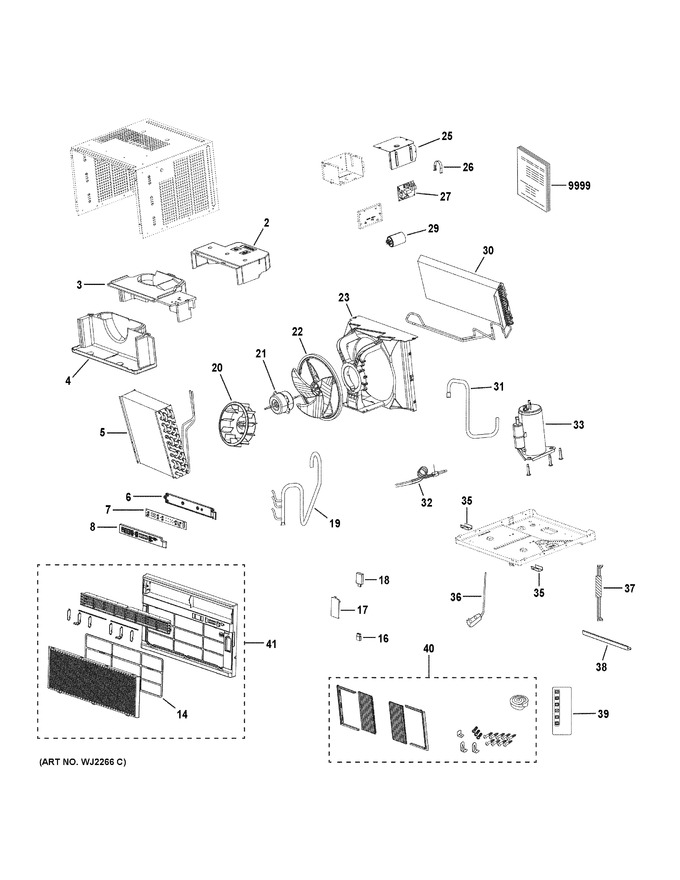

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WJ76X22153 | Indoor Fan Shroud, Upper |
|
- | |||||
| 3 | WJ76X22152 | Indoor Fan Shroud, Middle |
|
- | |||||
| 4 | WJ76X22151 | Indoor Fan Shroud, Lower |
|
- | |||||
| 5 | WJ87X22940 | Evaporator Asm |
|
$ 196.10 | |||||
| 6 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 7 | WJ26X23922 | Iu Board |
|
- | |||||
| 8 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 14 | WJ85X23776 | Filter |
|
- | |||||
| 16 | WJ35X23893 | Wiring Harness |
|
- | |||||
| 17 | WJ76X23891 | Cover Board |
|
- | |||||
| 18 | WJ01X23911 | Wifi Module |
|
- | |||||
| 19 | WJ53X23921 | Suction Tube |
|
- | |||||
| 20 | WJ76X22150 | Indoor Fan Blade |
|
- | |||||
| 21 | WJ94X22162 | Fan Motor |
|
- | |||||
| 22 | WJ76X22156 | Outdoor Fan Blade |
|
- | |||||
| 23 | WJ76X22157 | Outdoor Fan Shroud |
|
- | |||||
| 25 | WJ76X22145 | Cover |
|
- | |||||
| 26 | WJ02X20069 | Capacitor Clamp |
|
- | |||||
| 27 | WJ26X22163 | Main Board |
|
- | |||||
| 29 | WJ20X20068 | Capacitor |
|
- | |||||
| 30 | WJ88X22921 | Condenser |
|
- | |||||
| 31 | WJ53X23920 | Discharging Tube |
|
- | |||||
| 32 | WJ53X22159 | Capillary Tube |
|
- | |||||
| 33 | WJ98X22160 | Compressor |
|
- | |||||
| 35 | WJ86X23909 | Bracket Guide |
|
- | |||||
| 36 | WJ35X20091 | Power Cord |
|
- | |||||
| 37 | WJ35X23903 | Main Harness |
|
- | |||||
| 38 | WJ65X23641 | Top Rail |
|
- | |||||
| 39 | WJ26X23870 | Remote Control |
|
- | |||||
| 40 | WJ43X22154 | Installation Parts |
|
$ 57.16 | |||||
| 41 | WJ71X23910 | Front Panel Asm |
|
- | |||||
| 85 | WJ05X20122 | Plug |
|
- | |||||
| 9999 | 49-7826 | Pm Use And Care |
|
- |
