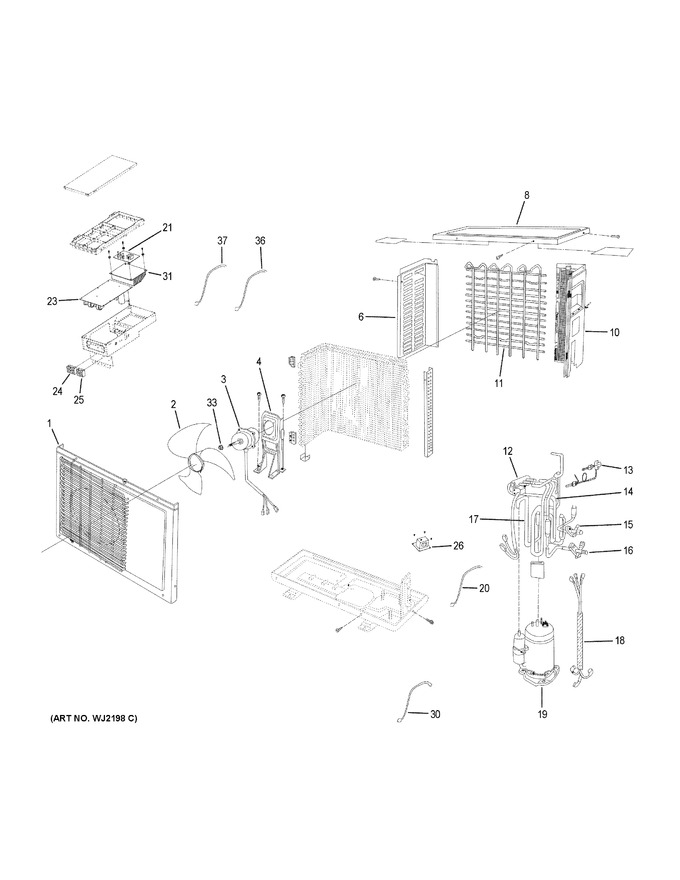

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23695 | Casing |
|
- | |||||
| 2 | WJ73X23305 | Fan Blade |
|
- | |||||
| 3 | WJ94X23327 | Outdoor Fan Motor |
|
$ 196.23 | |||||
| 4 | WJ65X23697 | Outdoor Fan Motor Bracket |
|
- | |||||
| 6 | WJ71X23696 | Left Side Panel |
|
- | |||||
| 8 | WJ71X23357 | Top Panel |
|
- | |||||
| 9 | WJ73X24376 | Valve Cover |
|
- | |||||
| 10 | WJ71X23699 | Right Side Panel |
|
- | |||||
| 11 | WJ71X23339 | Rear Grille |
|
- | |||||
| 12 | WJ53X22987 | 4-way Valve |
|
- | |||||
| 13 | WJ53X23169 | Electronic Expansion Valve |
|
- | |||||
| 14 | WJ53X23295 | Discharge Tube |
|
- | |||||
| 15 | WJ53X22991 | 2-way Stop Valve |
|
- | |||||
| 16 | WJ53X22992 | 3-way Valve |
|
- | |||||
| 17 | WJ53X23348 | Suction Tube |
|
- | |||||
| 18 | WJ35X23003 | Outdoor Wire Harness |
|
- | |||||
| 19 | WJ98X23285 | Compressor |
|
- | |||||
| 20 | WJ26X23278 | Ambient Temperature Sensor |
|
$ 9.60 | |||||
| 21 | WJ26X23002 | Outdoor Module |
|
- | |||||
| 23 | WJ26X23698 | Outdoor Power Control Board |
|
- | |||||
| 24 | WJ27X23010 | Terminal Block |
|
- | |||||
| 25 | WJ27X23011 | Terminal Block |
|
- | |||||
| 26 | WJ27X23006 | Reactor |
|
- | |||||
| 30 | WJ26X23334 | Pipe Sensor |
|
$ 9.27 | |||||
| 31 | WJ27X23337 | Radiator |
|
- | |||||
| 33 | WJ01X23312 | Flange Nut |
|
$ 8.88 | |||||
| 35 | WJ73X24377 | Electrical Cover |
|
- | |||||
| 36 | WJ26X23286 | Compressor Temperature Sensor |
|
$ 11.04 | |||||
| 37 | WJ26X23346 | Suction Temperature Sensor |
|
- | |||||
| 43 | WJ26X24109 | Inverter Assembly |
|
- |
