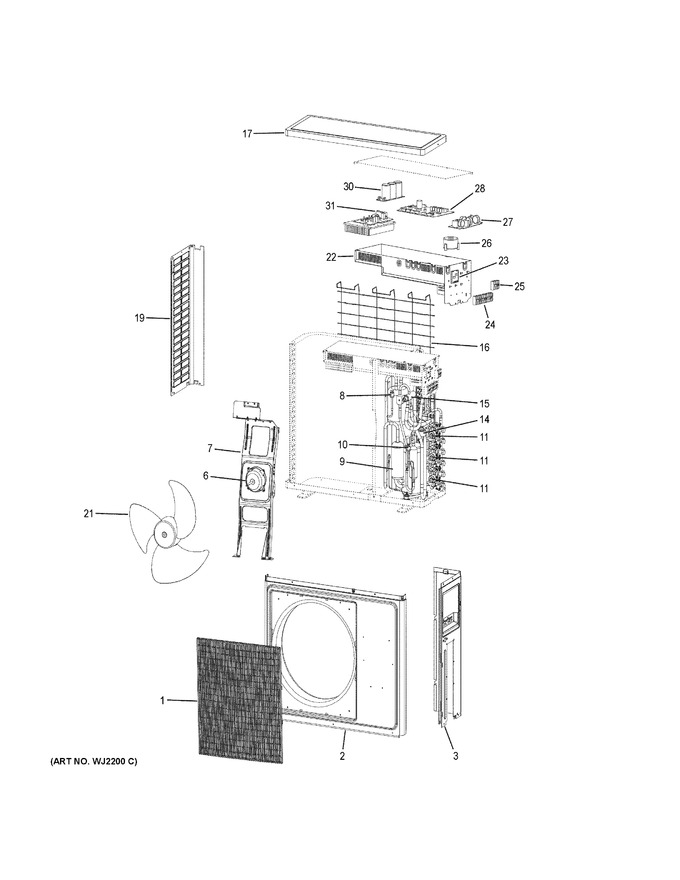

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23725 | Outlet Grille |
|
- | |||||
| 2 | WJ71X23714 | Casing |
|
- | |||||
| 3 | WJ71X23720 | Right Side Panel |
|
- | |||||
| 6 | WJ94X23718 | Outdoor Fan Motor |
|
- | |||||
| 7 | WJ65X23712 | Outdoor Fan Motor Bracket |
|
- | |||||
| 8 | WJ26X23722 | Low Pressure Switch |
|
- | |||||
| 9 | WJ98X23731 | Compressor |
|
- | |||||
| 10 | WJ27X22646 | High Pressure Switch |
|
- | |||||
| 11 | WJ26X22674 | Levb Electronic Expansion Valve |
|
- | |||||
| 14 | WJ53X23724 | Electronic Expansion Valve |
|
- | |||||
| 15 | WJ53X23567 | 4-way Stop Valve |
|
- | |||||
| 16 | WJ71X23711 | Rear Grille |
|
- | |||||
| 17 | WJ71X23723 | Top Panel |
|
- | |||||
| 19 | WJ71X23713 | Left Side Panel |
|
- | |||||
| 21 | WJ73X23728 | Outdoor Fan Blade |
|
$ 68.62 | |||||
| 22 | WJ26X23726 | Electrical Box |
|
- | |||||
| 23 | WJ26X23716 | Service Power Control Board |
|
- | |||||
| 24 | WJ26X23730 | Terminal Block |
|
- | |||||
| 25 | WJ26X23729 | Terminal Block |
|
- | |||||
| 26 | WJ26X23727 | Reactor |
|
- | |||||
| 27 | WJ26X23717 | Filter Power Control Board |
|
$ 381.44 | |||||
| 28 | WJ26X23715 | Outdoor Power Control Board |
|
$ 567.01 | |||||
| 30 | WJ20X23721 | Capacitor Power Control Board |
|
- | |||||
| 31 | WJ26X23719 | Inverter Driver Module |
|
- | |||||
| 32 | WJ96X24080 | Rectangular Inverter Board |
|
- |
